| Standard: | IEC60156, ASTMD1816, ASTMD877, BS5874 Etc. | Condition: | New |
|---|---|---|---|
| Warranty: | 12 Months | Output Voltage: | 100KV |
| Cup No.: | 1 Piece Or Customized | ||
| High Light: | power transformer testing,transformer oil testing equipment |
||

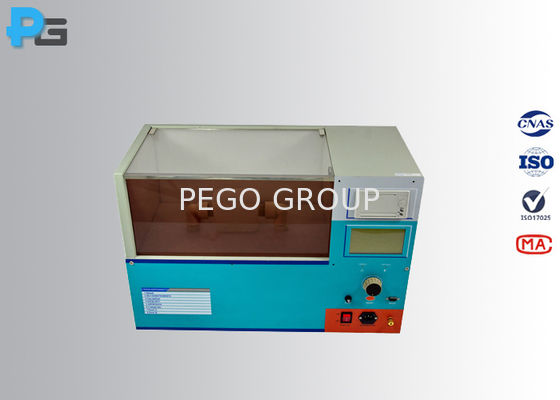

Transformer Insulating oil tester
1. Introduction
PG-502 insulating oil tester is developed according to the standards of IEC60156, ASTMD1816, ASTMD877, BS5874 and etc. The user can operate the equipment by mouse. Built-in EEPROM memory which can save 100 groups of data, and can freely to print the test result directly, the equipment has the features of simple operation, powerful function and Reliabilty.
2. Specification
| Input voltage | AC220V±10% |
| Output voltage | AC0~99.9KV |
| Voltage rising speed | 0.5KV/s±10%, 2KV/s±10%, 3KV/s±10%, 5KV/s±10% |
| Accuracy | Class 3 |
| Continuous test times | 1~9 times |
| Standing time | 0~9m59s |
| Memory | 100 groups |
| Voltage limit setting | 20KV~90KV |
| Arc time | ≤20ms |
| Standard | 1) Manual test 2) IEC156/IS6792/BS5874 test 3) User Customization 4) ASTMD1816 5) ASTMD877 6) ASTMD1816 7) 5 minutes fast test 8) dielectric voltage test |
| Temperature required | 5~50℃ |
| Humidity | ≤ 90%RH |
| Volume | 420mm*380mm*410mm |
