Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60529 | Material: | Brass And Stainless Steel |
|---|---|---|---|
| Type: | Hand-held Type | Shippment: | By Express |
| Warranty: | 24 Months | Application: | For IPX3 And IPX4 Testing |
| High Light: | waterproof test equipment,water ingress test equipment |
||

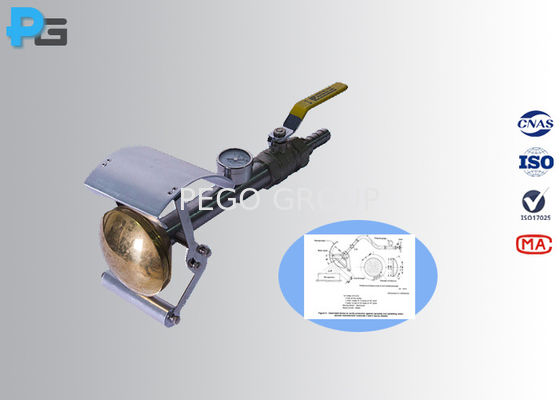

IEC60529 IP Testing Equipment Handle - Held Spray Nozzles for IPX3 and IPX4 Testing
Introduction:
Water spray nozzle is strictly designed according to the requirements of IPX3 and IPX4 code of GB4208 and IEC60529 standard. It’s used to test the waterproof performance of the appliance and electronics.
The main difference of the IPX3 and IPX4 handheld spray nozzle is that IPX4 needs to take off the balancing shield of the spray nozzle in order to make the enclosure splashed water in every possible direction.
Parameters:
| Nozzle Diameter | 102mm |
| Sphere Diameter | 75.5mm |
| Hole No. | 121pcs |
| Hole Diameter | 0.5mm |
| Nozzle Material | Brass |
| Water Discharge | 10L/min±5%, adjustable |
| Pressure Gauge Range | 0~0.4Mpa |
| Pressure Gauge | 0~0.25Mpa |
| Flapper | Detachable |
Picture:
