Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60598-1, VDE0620-1, IEC60884 .1, IEC60312 | Material: | Stainless Steel |
|---|---|---|---|
| Application: | For Plug And Socket-outlet | Working Power: | 220V/50Hz |
| High Light: | electrical plug tester,electrical outlet tester |
||

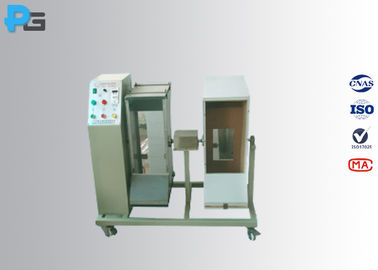

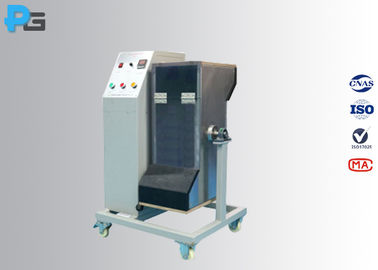

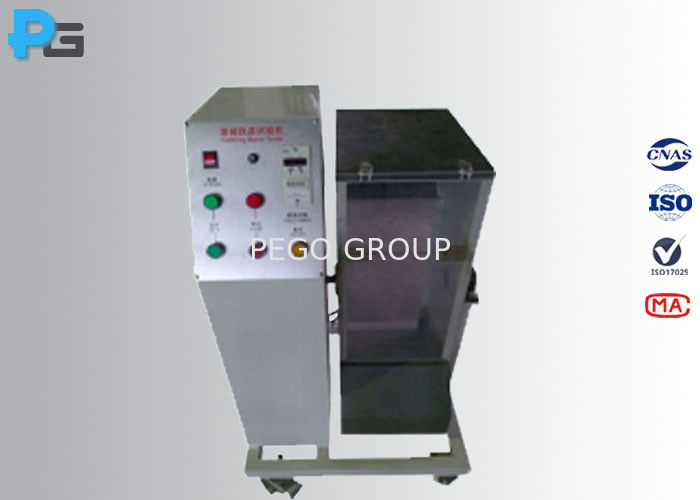

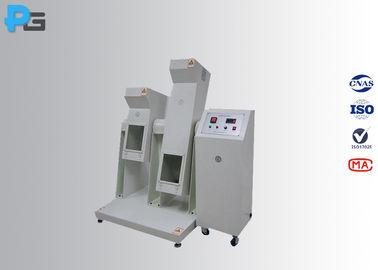

Tumbling Barrel Plug socket Tester Conforms to IEC60884 and VDE0620
Introduction
The TB series tumbling barrel test machine meets the requirements of GB2099.1-2008 clause 24.2, GB2423.8, GB7000, GB13140, VDE0620, IEC68-2-32, BS1363.1, EN50075, UL60730 and etc., tumbling barrel test machine is applied to evaluate the fall resistance performance, the fall times can be preset and auto shut down when finished.
Parameter
| Model | TB-1 | TB-2 | TB-3 | TB-4 |
| Roll speed | 5rpm | 5rpm | 5rpm | 5rpm |
| Fall speed | 10 times/min | 10 times/min | 10 times/min | 10 times/min |
| Material | 3mm quality steel plate | Side: 1.5mm quality steel plate; Up-down: 3mm steel plate and 19mm board; bevel: plastic | Back-front: transparent plastic plate; Up-down: 10-19mm thick plywood | 5mm quality steel plate, up-down: 20mm board in the steel plate |
| Test times | 0-9999 times | 0-9999 times | 0-9999 times | 0-9999 times |
| Fall height | 650mm | 675mm | 650mm | 1070mm |
| No. of tumbling barrel | Single or double | Single or double | Single or double | Single or double |
| Application | Plug type rectifier/transformer, luminaries, connection device | Plug and socket, similar accessories | BS plug and socket | Household Vacuum Cleaners and similar electronic equipment |
| Compliance standard | GB7000.1 figure 25, IEC60068-2-32, IEC60598-1, VDE0620-1 figure 27 | GB2009.1 clause 24.2, GB2423.8, IEC60884 .1, EN50075 | BS1363.1 figure 20, UL60730 | IEC60312 |
| Power |
220V 50HZ 150V 60Hz |
220V 50HZ 150V 60Hz |
220V 50HZ 150V 60Hz |
220V 50HZ 150V 60Hz |
