| Reference: | IEC60695-10-2, IEC60335, IEC60601 | Material: | Stainless Steel |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Pressure: | 20N | Ball Diameter: | 5mm |
| High Light: | environmental test chamber,temperature humidity test chamber |
||

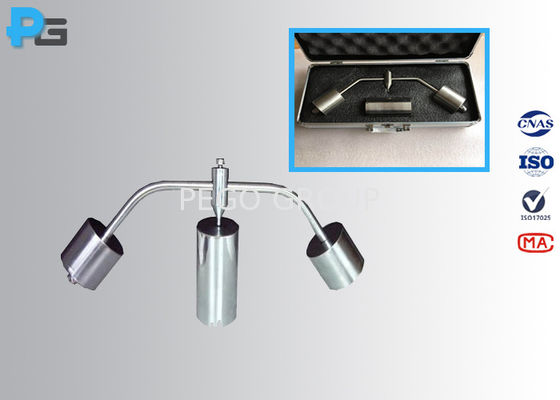

IEC60335 Ball Pressure Test Device made of Stainless Steel with 20N Pressure
1. Introduction
The ball pressure test device is made as per IEC60601, IEC60695-10-2,IEC60335, GB4706.1 and etc. the surface of the part to be tested is placed in the horizontal position and a steel ball of 5 mm diameter is pressed against the surface with a force of 20 N. The ball is withdrawn after 1 h and the diameter of the impression made by the ball is measured. The test is performed in a heating cabinet at a temperature of 75°C ± 2°C. An impression greater than 2 mm in diameter constitutes a failure.
2. Parameters:
| Ball diameter | 5mm (R2.5mm) |
| Test Pressure | 20N±0.2N |
| Material | Stainless Steel |
| Sample supportor | Φ50mm-length 100mm, cylinder sharp |
