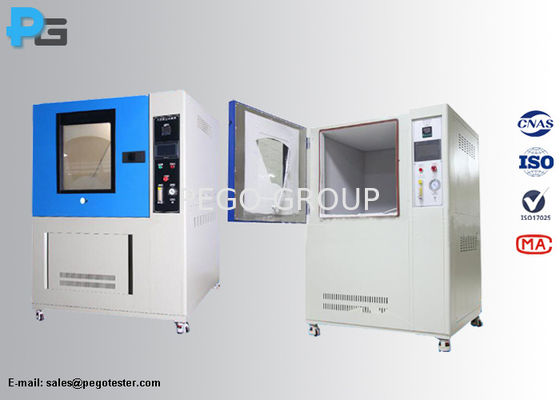

PLC Control IP5X and IP6X Dust Ingress Protection Test Equipment for Auto Parts
1. Introduction
The sand and dust test chamber helps to evaluate the ability of the equipment to withstand the effects of dust, it is apply to test various auto parts includes lamps, instrument, electric dust cover, steering system, door lock and etc., as well as inspection of product sealing proformance. Meet the test requirment of IP5X and IP6X enclosure protection levels as specified in IEC60529.
The dust chamber is controlled by 7 inch touch screen and PLC system, the interior of the cabinet is equipped with lighting and power supply, which can be used for live dust-proof test of the sample to simulate a more realistic use environment. There is a mesh sample support plate inside the box for Dust recycling, it is made of stainless steel and has a load capacity of 50KG.
2. Parameters
| Model | PG-SC-100 | PG-SC-225 | PG-SC-500 | PG-SC-1000 |
| Working dimension(mm) | 400*500*500 | 500*600*750 | 800*800*800 | 1000*1000*1000 |
| Working power | AC 380V±10%, 50Hz | |||
| Temperature range | RT~+70℃ | |||
| Temperature evenness | ≤2℃ | |||
| Temperature fluctuation | ≤±0.5℃ | |||
| wire diameter of metal net | 50μm | |||
| Wire interval | 75μm | |||
| Airflow velocity | ≤ 2.5m/s | |||
| Time range | 1S~999H (adjustable) | |||
| Vibration time | 1S~999H (adjustable) | |||
| Dust concentration | 2~4kg/m3 | |||
| Sand and dust | Dry powder, portland cement paste | |||
| Power socket for EUT | IP66, 220V/16A | |||
| Circulatory system | Dust recycling | |||
| Working condition | Temperature:15℃～35℃, humidity:≤85%R.H. | |||
| Configuration | Observe window equip with window wiper, lamp | |||
| Power supply | 2KW, AC220V±10%, 50Hz | |||
3. Picture
4. FAQ
1). What is the warranty period of the equipment?
Answer: the equipment warranty is 12 months upon you receipt of the equipment
2). Can you provide third-lab calibration certificate?
Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.
3). Does this equipment has English operation interface?
Answer: of course, yes, the operation interface has English instruction.
4). Your power plug can not be used in our country, can you change it for us?
Answer: yes, we will change the power plug to fit your demands, please subbmit this issue when you make order.
