230nm-850nm Portable LED Light Testing Equipment Spectral Irradiance Colorimeter

230nm-850nm Portable LED Light Testing Equipment Spectral Irradiance Colorimeter
230nm-850nm Portable LED Light Testing Equipment Spectral Irradiance Colorimeter 230nm-850nm Portable LED Light Testing Equipment Spectral Irradiance Colorimeter

Large Image :  230nm-850nm Portable LED Light Testing Equipment Spectral Irradiance Colorimeter

Product Details:

Place of Origin: China
Brand Name: PEGO GROUP
Certification: Third-Lab Calibration Certificate
Model Number: OHSP-350UV

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1500~USD2500
Packaging Details: carton
Delivery Time: 15 workingdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detailed Product Description
Wavelegnth Range: 230nm To 850nm Material: Aluminium Alloy
Size: 135mm*80mm*31mm Weight: 430g
Test Parameters: CCT, CRI, Chromaticity Coordinates, Radiant Energy,Illuminance Power Supply: Li-battery With Charger
Warranty: 12 Months Shippment: By Express
High Light:

led testing instruments

,

light testing equipment

230nm to 850nm Portable LED Light Testing Equipment Spectral Irradiance Colorimeter with Software



1. Introduction

The UV spectral irradiance colorimeter can test the UV mercury lamp, UV LED lamp at the wavelength range of 230nm to 850nm. The equipment has the configuration of CCD sensor, 5 inch LCD touch screen, 4000mAh Li-battery and 8GB SD card. With small size of 163mm*81mm*25.8mm can realize the field test for illuminance and irradiance.



2. Test Parameter

Irradiant energy, correlated color temperature, color rendering index, chromaticity coordinates, wavelength, Illuminance, SDCM.



3. Features

1) Long optical system, 2nm resolution, and wider wavelength range. This equipment can test the width spectral like LED, and also can test the narrow spectral like CFL and HID.

2) With the technology of auto zeroing and zero compensation, the max integral time shall be longer and can test the weaker signal.

3) Adopts shutter technology, the min integral time can be 50μs, and can test the stronger signal.

4) Adopts portable design, with features of small volume, high resolution, color display and easy operation.



4. Parameters:

Parameter range Parameter range
spectrum 230nm~850nm illuminance 5-200000lx
Spectrum width (FWHM) 2nm Color temperature 1000-100000K
Spectrum resolution 0.2nm X,Y accuracy ±0.001 At condition of luminaire A, 2856K, 10000LX
Sensor CCD X,Y repeatability ±0.0005
Sensor array points 3648 Illuminance accuracy ±4%
Zero mode Auto zeroing Rendering accuracy ±1.5%
Integral time 50us-20000ms Wavelength accuracy ±0.5nm
LCD screen 5 inches, IPS touch screen Wavelength interval 1nm
Detector port Ø 10mm  Test energy 0--- 999999mJ/cm2
resolution 480*854 Energy accuracy ± 10%
Test mode Single/continuous AD resolution 16 bits, 250KSPS
Exposure mode Auto/manual language Chinese/English
Spectrum display 6 parameters for option to display File save 8GB SD card
Spectrum curve Data output connector SD Card/USB2.0
Data display Up and down scroll to display all the data Dimension (L*W*H) 163*81*25.8mm
Diagram display CIE1931 chromaticity diagram Weight 500g
CIE1960 chromaticity diagram Operation temperature 0~35°C
CIE1976 chromaticity diagram Storage temperature -10~40°C
SDCM diagram continuous working hours >10hours
CRI circular diagram Battery capacity 4000mAh
CRI histogram structure aluminum alloy

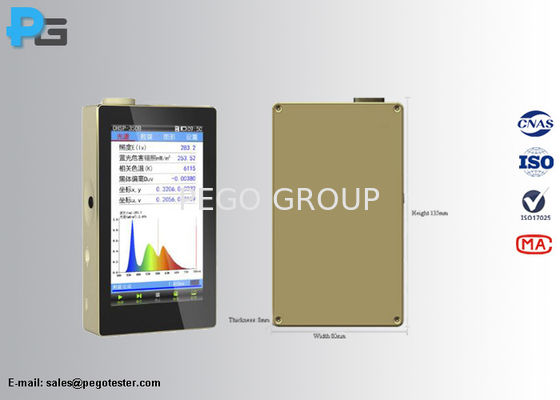

 5. Pictures

230nm-850nm Portable LED Light Testing Equipment Spectral Irradiance Colorimeter 0




6. FAQ

1. What is the warranty period of the equipment?
Answer: the equipment warranty is 12 months upon you receipt of the equipment



2. What accessories are included in the instrument?

Answer: Power adapter, data line, 8G TF card, wrist band and cloth bag



3. Does this equipment has English operation interface?
Answer: of course, yes, the operation interface has English instruction.
