| Standard: | IEC60529 | Aperture Of Nozzles: | 0.4mm |
|---|---|---|---|
| Application: | Outdoor Lighting, Household Appliance,auto Parts | Tube Radius: | 200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm Etc. |
| OEM: | Yes | Warranty: | 24 Months |
| High Light: | ingress protection test equipment,waterproof test equipment |
||

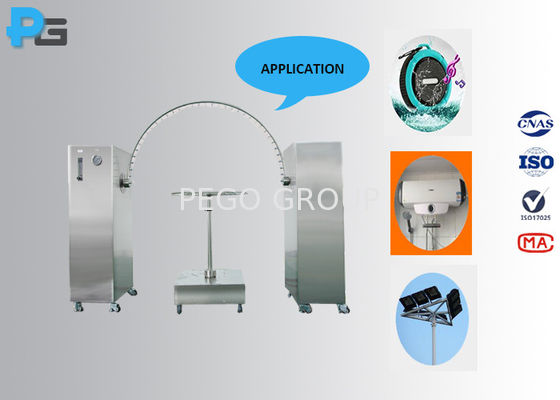

IEC60529 IPX3 IPX4 Rain Test Equipment Waterproof Testing Machine with 0.4mm nozzles
1. Introduction of IPX3 IPX4 Rain Test Equipment:
The IPX3 IPX4 Waterproof Environment Testing Machine is produced as per the requirements of IEC60529-2001 regarding the second characteristic numerals 3 and 4. The IPX3 IPX4 waterproof environment testing machine is applied to simulate the electronics, luminaire, electric components and auto parts under the conditions of spraying water and splashing water, and then to check if they can meet the requirements.
2. Parameter of IPX3 IPX4 Rain Test Equipment:
| Model | IPX34-800 | IPX34-1200 | IPX34-1600 | IPX34-200 | IPX34-400 | IPX34-600 |
| Type | Frame type | Box type | ||||
| Tube radius (mm) | R800 | R1200 | R1600 | R200 | R400 | R600 |
| Speed | Back and forth at 1200: 4s; back and forth at 3600:12s | |||||
| Delivery rate(L/mm) | 0.5-10 (adjustable) | 0.5-10 (adjustable) | ||||
| Aperture of drop (mm) | 0.4 | 0.4 | ||||
| Tube angle | ±600, ±1800 | ±600, ±1800 | ||||
| Testbed dimension(mm) | 600 | 800 | 1200 | 200 | 400 | 600 |
| Product under test(max) | 600 | 800 | 1200 | 100*100*100 | 300*300*300 | 500*500*500 |
| Turntable speed (r/min) | 1-5 (adjustable) | 1-17 (adjustable) | ||||
| Turntable height (mm) | 950-1550 | 1000-1700 | 1200-2000 | 100 | 300 | 500 |
| Interior dimension(cm) | / | 50*50*50 | 90*90*90 | 120*120*120 | ||
| Outer dimension(cm) | / | 100*68*144 | 134*108*176 | 174*148*195 | ||
3. Features Rain Test Equipment:
● For IPX3 and IPX4 testing
● The shell of the equipment and turntable are made by SUS304# stainless steel, to ensure rustless.
● Adopts double box-type structure and buit-in water tank, the water can be recycled.
● Equip with adjustable trundles, makes the equipment easy to move.
● Oscillating tube drive: Adopts Panasonic serve motor, with features of low noise and high accuracy.
● Turntable drive: adopts Chinese branded step motor, can adjust the speed and angle by touch screen, and auto control the directions (fit for the samples to do live test).
● Time setting for power: power off: 0-999min-power on: 0-999min-power off: 0-999min
● Control components: 7 inch touch screen+ Panasonic PLC.
4. Application of IPX3 IPX4 Rain Test Equipment:
5. FAQ of IPX3 IPX4 Rain Test Equipment:
1. What is the warranty period of the IPX3 IPX4 Rain Test Equipment?
Answer: the IPX3 IPX4 Waterproof Testing Machine's warranty is 12 months upon you receipt of the equipment
2. Can you provide third-lab calibration certificate?
Answer: Yes, the IPX3 IPX4 Rain Test Equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.
3. Does the IPX3 IPX4 Rain Test Equipment has English operation interface?
Answer: of course, yes, the operation interface has English instruction.
4. Your power plug can not be used in our country, can you change it for us?
Answer: yes, we will change the power plug to fit your demends, please subbmit this issue when you make order.
