Fire Hazard Electrical Safety Test Equipment IEC60695 GWFI / GWIT Glow Wire Test Apparatus

Fire Hazard Electrical Safety Test Equipment IEC60695 GWFI / GWIT Glow Wire Test Apparatus

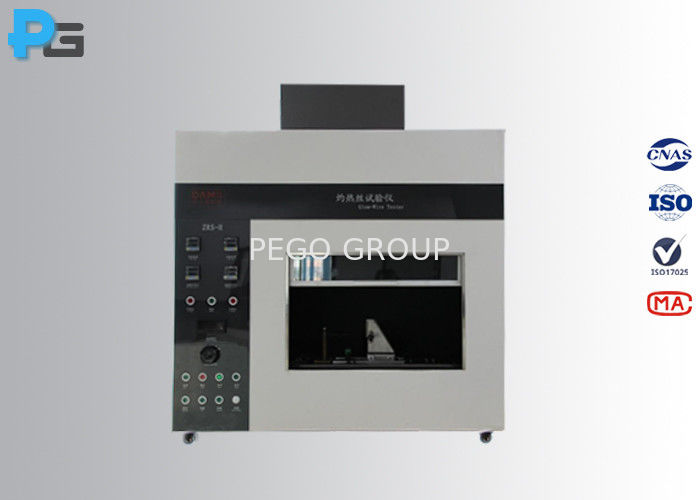

Fire Hazard Electrical Safety Test Equipment IEC60695 GWFI / GWIT Glow Wire Test Apparatus Fire Hazard Electrical Safety Test Equipment IEC60695 GWFI / GWIT Glow Wire Test Apparatus

Large Image :  Fire Hazard Electrical Safety Test Equipment IEC60695 GWFI / GWIT Glow Wire Test Apparatus

Product Details:
Place of Origin: China
Brand Name: PEGO GROUP
Certification: Third-lab calibration certificate
Model Number: GW-1H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3100-USD4500/set
Packaging Details: each packed in a wooden case, 115*75*144cm
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Reference Standard: O IEC60695-2-10 T0 IEC60695-2-13, UL746A, IEC829, DIN695 And VDE0471 Shell Material: Coating Metal Sheet
Name: Fire Hazard Testing Equipment Controller: Single Chip And Push Button
Dimension: 1220mm * 600mm *1250mm (W*D*H Working Power: Single Phase 220V/50-60Hz
Warranty: 12 Months Shipment: By Sea Or Air
High Light:

electrical testing instruments

,

electric test meter

IEC60695 GWFI / GWIT Glow Wire Test Apparatus Fire Hazard Safety Testing Equipment



1. Introduction

The glow wire tester is designed according to IEC60695-2-10 t0 IEC60695-2-13, UL746A, IEC829, DIN695 and VDE0471. The specific material and sharp heating wire is heated to specific temperature (550 ℃~960 ℃) for 1 min by max current, then vertical burns the EUT with certain pressure (0.95N) for 30s, then check if the test specimen and bedding material are burning, and count the burning time to judge the dangerousness of the specimen. Generally it is applied to test flammability, GWIT and GWFI of lighting lamps, electronic products and household appliances The equipment is applicable to flame resistance test of all levels of QC departments and corresponding enterprises.

Glow wire testing is an electrical safety test designed to evaluate the flame resistant properties of plastic materials used in electrical devices. Its purpose is to protect against the risk of fire from overheated or electrically energised parts which may cause the plastic material to ignite. This may occur in normal use, under reasonable abnormal use, malfunction or failure of the product. The glow wire simulates an over-heated part which then comes into contact with plastic materials.



The glow-wire test apparatus is controlled by single chips and push buttons, the shell is made of coating metal sheet, the test apparatus is built-in air exhaust, and the front panel is transparent for easy observation of the experimental process.



GWFI——glow-wire flammability index. Within 30 seconds after removing the glow wire, if the flame of the test sample is extinguished, the packaged crepe paper under the sample does not ignite, and the sample does not ignite, then the temperature can be recorded as acceptable. If the above conditions are not met, you will need to select a lower temperature for testing. The maximum temperature that can be achieved by three consecutive experiments plus 25k is the glow wire light-off temperature.



GWIT——glow-wire ignition temperature, GWIT is the lowest temperature at which the material will ignite and the burning time exceeds 5 s when the heating element is in contact with the sample.



2. Parameters

Glow-wire Loop

Diameter: 4mm ± 0.04mm

Material: Ni/Cr(80/20)

Sharp: 500W standardized loop, horizontally placed

Thermocouple

Diameter: Φ0.5mm K type

Material: K type (The insulating sleeve heat resist to 1250 ℃)

Glow-Wire Heating Temperature

500 ℃ ~1000℃ (presettable)

temperature fluctuation < 3 ℃

Temperature Monitor A thermocouple is placed at a distance of 100 mm between the glow wire device and the back panel of the cabinet, and an external temperature display instrument is provided
Flame Height Measuring with a steel ruler
Thermal radiation baffle Automatic masking
Pressure on test specimen 0.95N±0.1N
Maximum penetration depth 7mm ± 0.5mm (adjustable)
Specimen moving speed 10mm /s ~25mm /s
Glow Time 30s±0.1s(1s ~ 999.9s adjustable)
Burning time 0-999.9s±0.1s (auto record)
Flame Chilling time 0-999.9s±0.1s (auto record)
Standard Silver Foil

Thickness:0.06mm

Purity:≥99.8%

Area: 2mm2

Ignition mat White pine board with thickness of 10mm is covered with a layer of 12~30g/m2 wrapping tissue, 200±5mm below the sample.
Chamber volume ≥ 0.5m3 , matte black background, illuminance ≤ 20Lux, exhaust hole: Φ70mm (Power on automatic work)
Dimension 1220mm * 600mm *1250mm (W*D*H), exhaust device: Φ100mm
Power 1kVA 220V/50-60Hz



4. Working studio

 Fire Hazard Electrical Safety Test Equipment IEC60695 GWFI / GWIT Glow Wire Test Apparatus 0



5. FAQ

1). What is the warranty period of the equipment?
Answer: the equipment warranty is 12 months upon you receipt of the equipment



2). Can you provide third-lab calibration certificate?
Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.



3). What is the working power of the equipment?
Answer: single phase 220v/50-60Hz



4). What is the language of the operation interface?

Answer: English
