Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60068-2-75, IEC60598 | Condition: | New |
|---|---|---|---|
| Shipment: | By Express | Impact Energy: | 5J |
| H.S. Code: | 9024800000 | Impact Level: | IK08 |
| High Light: | impact testing machine,pendulum impact tester |
||

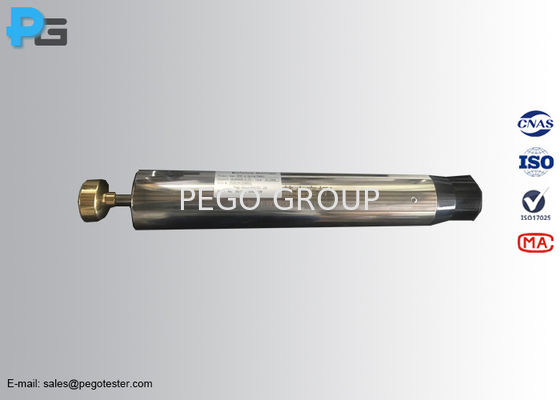

IEC60068-2-75 IK08 Level Spring Impact Hammer for 5J Impact Testing
1. Introduction:
The spring impact hammer is designed according to IEC60068-2-75 (GB/T2423), it is necessary equipment for electronic equipment to test the degrees of protection provided by enclosures against external mechanical impacts. It is applied to test household appliance, electronic equipment, lamp, shells, action bars, hand shank, knob, indicator and etc.
IK ratings are defined as IKXX, XX is a number from 00 to 10 which indicates the degrees of protection provided by enclosures against external mechanical impacts. The different IK rating relate to the ability of an enclosure to resist impact energy levels measured in joules (J). It is designed according to IEC60068-2-75 Ehb, and can applicate to IEC60598, IEC60068-2-75 and etc.
2. Model
| Model | Impact Energy | Equivalent Quality |
| IK01 (single) | 0.14±0.01J | 250g±2% |
| IK02 (single) | 0.20±0.02J | 250g±2% |
| IK03 (single) | 0.35±0.03J | 250g±2% |
| IK04 (single) | 0.50±0.04J | 250g±2% |
| IK05 (single) | 0.70±0.05J | 250g±2% |
| IK06 (single) | 1.00±0.05J | 250g±2% |
| Ik07 (single) | 2.00±0.10J | 500g±2% |
| IK08 (single) | 5±0.25J | 1.7kg±2% |
| IK01-IK06 (universal) | 0.14J~1.00J | 250g±2% |
3. Degrees of protection against external mechanical impacts
| IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 |
| 0.14J | 0.2J | 0.35J | 0.5J | 0.7J | 1J | 2J | 5J | 10J | 20J |
4. Parameters:
| Model | IK01-06 | IK07 | IK08 |
| Impact Energy | 0.14J, 0.20J, 0.35J, 0.5J, 0.7J or 1.0J | 2.00±0.05J | 5.00±0.25J |
| Tolerance | ±10% | ±5% | ±5% |
| Equivalent mass | 250g±5g | 500g±5g | 1.7kg±2% |
| Trigger force | <10N | <10N | <10N |
| Total mass | 1250g±10g | 1500g±10g |
5. Caution
● When not is use, the hammer should be in release conditions.
● When change or adjust the spring, the hammer should be calibrated by the calibration department before using.
● The hammer is a precision instrument, please handle with care and beware of fall.
● Storage condition: Temperature: 5~35℃,box with desiccant.
6. FAQ:
1. What is the warranty period of the equipment?
Answer: the equipment warranty is 12 months upon you receipt of the equipment
2. Can you provide third-lab calibration certificate?
Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.
3. Does this equipment has English operation interface?
Answer: of course, yes, the operation interface has English instruction.
4. Your power plug can not be used in our country, can you change it for us?
Answer: yes, we will change the power plug to fit your demends, please subbmit this issue when you make order.
