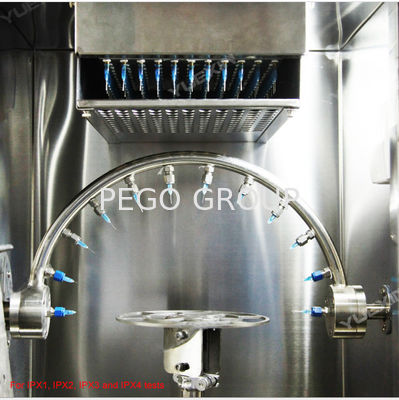

IEC60598 / IEC60529 IPX1 to IPX4 Waterproof Test Chamber (Support Live Test)



1. Introduction

IPX1-4 waterproof test chamber combines the oscillating tube and drip box in one system, it meets the requirement of IEC60529 regarding the IP level IPX1, IPX2, IPX3 and IPX4. Waterproof test simulates the condition of dripping water, splashing water and spraying water, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.



The inner box and turntable is made by SUS304 stainless steel with thickness of 1.2mm, which can against the water impact. The outer box is made of high quality steel covered with paint. Built in water tank and with ball valve to control water level, the water can be recycled. The system is controlled by Panasonic PLC and 7 inch touch screen, user is easy to operate the tests.



2. Features

1). Used for IPX1, IPX2, IPX3, IPX4 waterproof testing

2). The oscillating tube is driven by Chinese branded servo stepper motor, speed and angle can be adjusted accurately.

3). The water filter is installed on water supply line, which can filter impurities in water and prevent the nozzle from block.

4). The turntable is driven by stepper motor, the speed can be preset on touch screen, and can control forward and reverse rotation.

5). The test box is installed with a socket-outlet (AC220V/10A) to support live test, on and off time is controlled within 0-999min (on)~0-999min (off) , which is applied to on-off test.

6). Built-in water tank, the water can be recycled, and no need to build a professional waterproof test room. The water level is controlled by ball valve with alarm.

7). The drip board adopts a vacuum design and is constructed of SUS304# stainless steel, the excess water of the drip board and needle can be drained by connecting the air compressor to avoid clogging of pinholes due to long-term accumulation of water and scaling.

8). Transparent observation window made of toughened glass material, working chamber equipped with LED lighting, user can observe the specimen during the test.

9). Controller: Adopts 7 inch touch screen and Panasonic PLC

10). With intelligent operation interface, the user can directly select the test level, and the system will automatically perform the test according to standard conditions.

3. Parameters:

Control System7 inch touch screen +PLC
Inner Chamber Dimension1300*1300*1450 (W*D*H)
Outer Dimension1750*1520*1950mm (L*D*H)
IPX1-2 Parameter
Drip board size1000mm*1000mm
Aperture of dropΦ0.4mm
Pitch-row(mm)20*20mm
Delivery rateIPX1=1mm/min, IPX2=3mm/min (manual control)
IPX3-4 Parameter
Tube Radius (mm)R600 (R400, R200 for optional)
Delivery Rate (L/min)IPX3=0.56L/min, IPX4=0.84L/min
Aperture of nozzles (mm)0.4
Space between Nozzles (mm)50
Inner Diameter of Tube (mm)15
Tube Angle1200 (IPX3), 3600 (IPX4)
Tube Speed4s for 2*1200, 12s for 2*3600
Flow Control ModeManual control
Turntable Parameters
Diameter of Turntable (mm)Ø600
Speed of Turntable1-5r/min
Height of Turntable550-1000mm
Tilt angle of turntable00 or 150
ProtectionElectric leakage, hydropenia, short circuit
Working Power380V/50Hz (3 phases 2 lines)
Power3KW
Power supply for sample220V/50Hz
StandardIEC60529:1989+A1:1999, GB4208-2008 GB7000.1
Working conditions5℃~35℃ (temperature), ≤85% (R.H.), 86kPa~106kPa (pressure)
Water source

1). The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet.

2). The faucet is not more than 2 meters away from the equipment

Air sourceUser prepare the air compressor, recommend air pressure: 0.6-0.8Mpa
Spare parts100pcs spare nozzles, 20pcs spare brass nozzle, 1 spare water filter


5. Details:
 IPX1 IPX4 Waterproof Test Chamber SUS304 IEC60598 IEC60529 0

6. FAQ
1). Is the turntable has adjustable incline function according to 60598, a 15o angle is requested?
Pego: Yes, the equipment includes a turntable, and the turntable has incline function. For IPX2 test, the turntable should be 15 degrees tilted.


2). For IPX3/4 oscillating tubes, are the tubes could change or fixed size?
Pego: Yes, the oscillating tubes can be changed, but it can only be replaced with a smaller tube than the original one. For example, if we recommend R600 oscillating tube as per your maximum specimen, then R400 and R200 tubes can replace R600 tube for testing smaller sample.

3). Could the turntable be adjusted manually Test Sample for setup?

Pego: The rotation speed of turntable can be set on touch screen.

4). How’s the mechanism for the Nozzle? Does it easy to change? Could a close up photo could be provide?
Pego: Yes, the nozzle can be changed easily.
 IPX1 IPX4 Waterproof Test Chamber SUS304 IEC60598 IEC60529 1 IPX1 IPX4 Waterproof Test Chamber SUS304 IEC60598 IEC60529 2

5). Does the chamber has any spare nozzles?
Pego: Yes, 100pcs spare nozzles, 20pcs spare brass nozzle seat and 1 spare water filter will ship together with the equipment.
