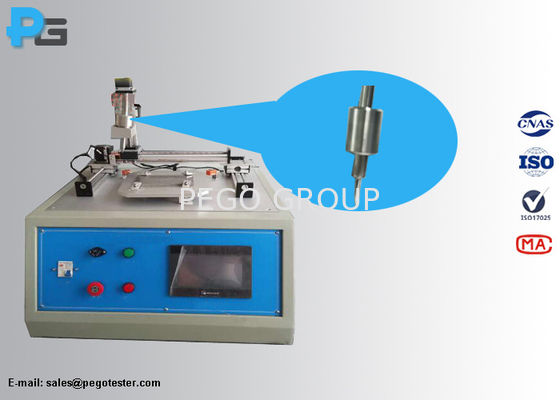

PLC Automatic Abrasion Resistance Tester Hardened Steel Radius 0.25mm Scratch Pin

PLC Automatic Abrasion Resistance Tester Hardened Steel Radius 0.25mm Scratch Pin
PLC Automatic Abrasion Resistance Tester Hardened Steel Radius 0.25mm Scratch Pin

Large Image :  PLC Automatic Abrasion Resistance Tester Hardened Steel Radius 0.25mm Scratch Pin

Product Details:
Place of Origin: China
Brand Name: Pego Group
Certification: Third-Lab Calibration Certificate
Model Number: PG-9583
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detailed Product Description
Standard Comliant: IEC60950 Clause 2.10.8.4 And IEC60335-1 Clause 21.2 Configuration: Hardened Steel Pin, Test Bench
Pin Size: 40°Conical Sharp+0.25mm Radius Control Component: PLC+touch Screen
Warranty: 12 Months Working Power: 220V/50Hz
High Light:

PLC Automatic Abrasion Resistance Tester

,

Hardened Steel Abrasion Resistance Tester

,

Scratch Pin Abrasion Resistance Test Equipment

Automatic Abrasion Resistance Tester with Radius 0.25mm Scratch Pin



1. Application

The abrasion resistance tester is applied for Scratch testing on solid insulating accessible parts or printed boards used in household appliances and similar products to ensure that the material has sufficient strength not to be pierced by sharp tools.



2. Introduction

Abrasion resistance tester is designed according to IEC60950 clause 2.10.8.4 and IEC60335-1 clause 21.2. It is applied to do scratch test for accessible parts of solid insulation of household appliance and printed circuit boards, to ensure the material has sufficient strength to prevent penetration by sharp implements.



The scratch resistance test uses a hardened steel pin for scratching. The end of the steel pin should be tapered with a apex angle of 40°. The tip should be rounded with radius of 0.25 mm ± 0.02 mm.

When performing the scratch test, the test pin is held at 80-85° to the horizontal, scratches were performed at a speed of 20 mm/s ± 5 mm/s in a plane perpendicular to the edge of the conductor. The steel pin should be properly loaded so that the hardened steel pin can apply a force of 10N ± 0.5N along its axial direction. The scratch interval should be at least 5mm and at least 5mm away from the edge of the sample.



This equipment adopts the control system of PLC+ touch screen, and the performance is stable. Rotating the work surface makes it easy to realize the scratch test in both directions.



3. Specification

Scratching speed 0~25mm/s (adjustable)
Test times 0~9999 times (adjustable)
Scratching spacing 0~50mm (adjustable)
Working table 3600 rotation
Scratch angle 80-850 (the pin is fixed by clamp)
Force applied 10N±0.5N (option: 30N±0.5N equip with 20N weights)
Scratching pin Rounded with a radius of 0.25 mm ± 0.02 mm
Pin Tip 40°Conical sharp
Material of the pin Hardened steel
Working power 220V/50Hz
Control system PLC+touch screen
Drive mode Stepping motor
