Product Details:
Payment & Shipping Terms:
|
| Standard: | UL507 (PA135A) And UL1278 (PA130A) | Material: | Metal (probe), Nylon (handle) |
|---|---|---|---|
| Application: | For Testing The Accessability To Live Parts | Shipment: | By Express (door To Door Service) |
| High Light: | UL Accessability Test Probe,UL507 Accessability Test Probe,UL1278 Accessability Test Probe |
||

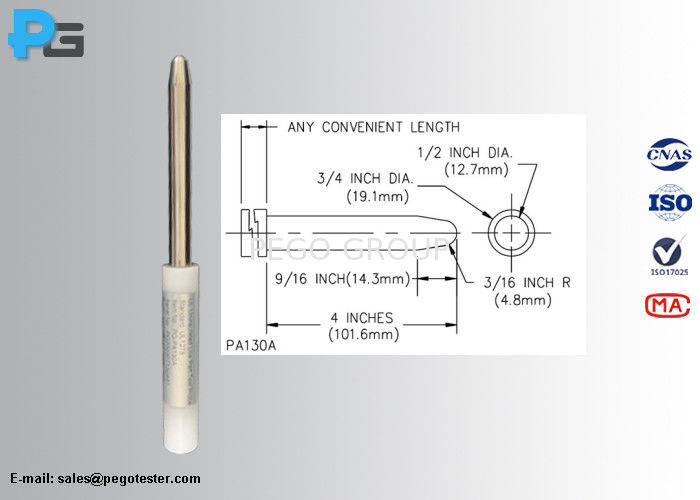

UL Accessability Test Probe as Per UL507 (PA135A) and UL1278 (PA130A)
1. Standard conforms to
UL507 (PA135A) and UL1278 (PA130A)
2. Application
In determining if an opening in an enclosure is acceptable.
Probe for uninsulated live parts UL1278 (PA130A)
Probe for film-coated wire of fan UL507 (PA135A)
3. Specification
| Rigid finger length | 101.6mm (4 inch) |
| Rigid finger diameter | Φ12.7mm (1/2 inch) |
| Head length | 14.3mm (9/16 inch) |
| Head radius | R4.8mm (3/16 inch) |
| Tail diameter | 191.mm (3/4 inch) |
| Material | steel finger+nylon handle |
