Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60335-2-14 Clause 20.102 | Material: | Nylon(handle), Stainless Steel (test Rod) |
|---|---|---|---|
| Cylinderical Rod: | Φ8mm-length 80mm | Application: | Testing The Accessiblity Of Blades Of Hand-held Blenders |
| Shipment: | By Express | Incoterm: | DAP |
| High Light: | 8mm Cylindrical Rod Test Probe,Test Probe For Blender |
||

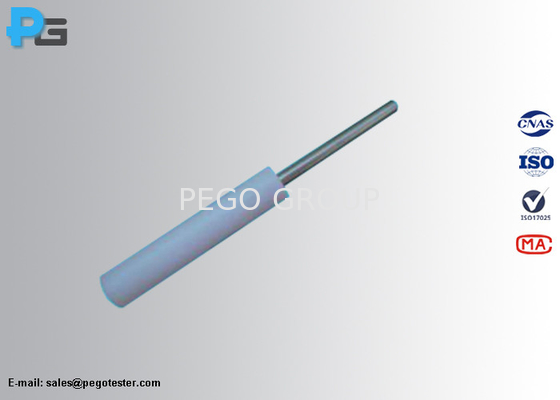

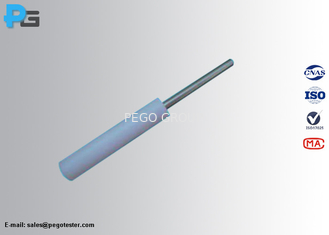

Φ8mm Cylindrical Rod Test Probe for Blender as Per IEC60335-2-14 clause 20.102
1. Introduction
The Φ8mm cylindrical rod test probe is designed to meet the test requirements of IEC60335-2-14 clause 20.102 and GB4706 clause 20.102, it is applied to check if the blades of hand-held blenders are completely screened from above and unable to touch a flat surface while rotating. The cylindrical rod from any position between the vertical and an angle of 450 to the upperside of the belending blade, it shall not be possible to touch the blades with the end of the tet rod.
2. Parameter
| Diameter of the rod | Φ8mm |
| Length of the rod | 80mm |
| Material | Nylong (handle)+stainless steel (test rod) |
3. Shipment
The probe will be packed with a plastic box and the outer package is a carton. Normally, we will ship the goods by Fedex, DHL or UPS, and the goods can be reach at the customer end within 3-7 working days, the traking number will be sent to our customers after we ship out the goods.
