Product Details:
Payment & Shipping Terms:
|
| Standard Conforms To: | IEC60068-2-31 Test Procedure 2, IEC60598-1, IEC60884-1 | Fall Height: | 500mm Or 1000mm Optional |
|---|---|---|---|
| Test Sample: | Plug, Socket-outlets And Similar Electrical Appliance | Conrol Units: | Button Control Or Touch Sreen |
| Number Of Falls: | 0-999999 Settable | Working Power: | 220V/50Hz Or Customized |
| High Light: | IEC 60068-2-31 mechanical strength test,500mm Fall Height mechanical strength test |
||

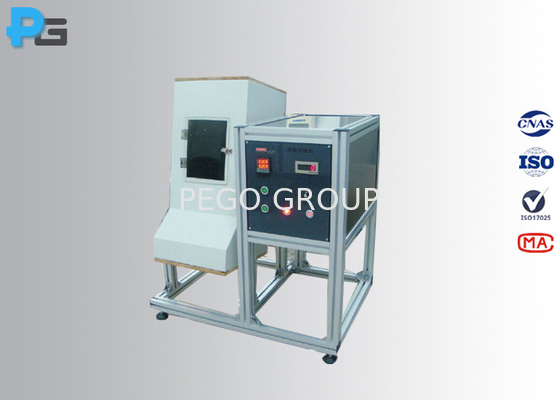

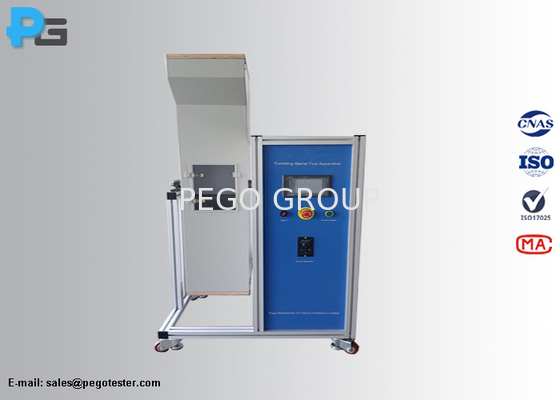

IEC60068-2-31 Repeated Free Fall 500mm /1000mm Rotating Barrel for Mechanical Strength Test
1. Introduction
The rotating barrel also called as tumbling barrel is designed according to IEC60068-2-31clause 5.3/figure A.1, IEC60598-1 clause 4.13.5, IEC60884-1 clause 24.2 for repeat free fall test. The test is to check the mechanical strength of the electrical appliance like plugs and socket-outlets, the sample shall be placed in the tumbling barrel and subjected to prescribed number of falls.
2. Specification
| Control units | Button control+meter/touch screen |
| Test station | 1 |
| Rotating speed | 5R/min |
| Rate of fall | 10 falls/min |
| Falling height | 500mm or 1000mm optional |
| Number of falls |
0-999999 (settable) Complete the prescribed number of falls, the equipment will auto stop |
| Configuration |
Two-end steel sheet thickness: 3mm Body steel sheet thickness: 1.5mm Backed hardwood: plywood with thickness 10-19mm Bevel: backed by 2 wedge-shaped chip-resistant rubber with a hardness of 80±20IRHD as per ISO48 |
| Sizes |
Width: 220mm Other sizes as below:
|
| Working power | 220V/50Hz or customized |
