Chamber-Type IEC60529 waterproof IP Testing Equipment for IPX1/2, IPX3/4 and IPX5/6 Testing
1. Function of the Comprehensive Test Chamber
The chamber equipment integated with drip box for IPX1 and IPX2 testing, R600 oscillating tube for IPX3 and IPX4 testing, and jet hose nozzles for IPX5 and IPX6 Testing. The main function of this equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rainy climate conditions. After testing, verification is used to determine whether the performance of the product meets the requirements of IPX1, IPX2, IPX3, IPX4, IPX5 and IPX6K, so as to facilitate product design, improvement, verification and factory inspection.
2. Application
Outdoor lightings, householding appliance, auto parts and other electronics device.
3. Standard Conform to
IEC60529:1989 +A1:1999 +A2: 2013
1). For IPX1 and IPX2 tests, the aperture of nozzle is Φ0.4mm, distant of drip nozzle is 20mm. The IPX1 test requests the dripping water (vertically falling drops) shall have no harmful effect, test duration: 10 minutes, equivalent to 1 mm / minute. The IPX2 test requests vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position, test duration: 10 minutes (2.5min in each of 4 fixed positions of tilt), water equivalent to 3 mm/minute.
2). For IPX3 test, the oscillating tube has spray holes over an arc of 600 either side of the centre point (the other holes are blocked), the total flow rate is adjusted as standard requirement, the enclosure to be tested is placed at the center point of the semicircle, the tube is caused to oscillate through an angle of 1200, 600 on either side of the vertical, the time for one complete oscillation (2*1200) being about 4s and test duration being 5min.
For IPX4 test, the oscillating tube has spray holes over the whole 180’’ of the semicircle, the total flow rate is adjusted according to the standard requirement, and measured with a flowmeter. The tube is caused to oscillate through an angle of almost 3600, 1800 on either side of the vertical, and time for one complete oscillation (2*3600) being about 12s. The duration of the test is 10min.
3). IPX5 Water jets, Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. Test duration: at least 15 minutes, volume: 12.5 litres per minute, pressure 30 kPa at distance of 3 m.
For IPX6 Powerful water jets, Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes, volume: 100 litres per minute, pressure 100 kPa at distance of 3 m.100 to 150mm
4.Parameters
| Model | PG-IPX16BS |
| Control System | 7 inch touch screen +PLC |
| Inner Chamber Dimension | 1300*1300*1450 (W*D*H) |
| Outer Dimension | 1750*3800*2150mm (L*D*H) |
| Diameter of Turntable (mm) | Ø600 |
| Bearing capacity | 50KG |
| Speed of Turntable | 1-5r/min |
| Height of Turntable | 400-700mm |
| Tilted angle | 00 or 150 (in horizontal direction) |
| Rotation Direction of Turntable | Forward rotation / forward and reverse alternative / intermittent rotation |
| Flowmeter adjustment method | Manual |
| Test time | 0-999min |
| Weight | About 380KG |
| IPX1-2 Drip box | |
| Drip board size | 800mm*800mm (square) |
| Aperture of nozzle | Φ0.4mm |
| Nozzles spacing | 20*20mm |
| Delivery rate | 1mm/min(IPX1), 3mm/min(IPX2) |
| Drip board lifting | fixed |
| IPX3-4 Oscillating tube | |
| Tube Radius (mm) | R600 |
| Delivery Rate | 1.8L/min±5% (IPX3), 2.6L/min±5% (IPX4) |
| Aperture of nozzles | 0.4mm |
| Space between Nozzles | 50mm |
| Inner Diameter of Tube | 15mm |
| Tube Angle | ±1200 (IPX3), ±3500 (IPX4) or user-define |
| Tube Speed | 4s for 2*1200, 12s for 2*3600 |
| Flow Control Mode | Manual control |
| IPX5-6 Jet Nozzles | |
| Aperture diameter of IPX5 nozzle | 6.3mm |
| Aperture diameter of IPX6 nozzle | 12.5mm |
| Delivery rate for IPX5 | 12.5±0.625 L/min |
| Delivery rate for IPX6 | 100±5 L/min |
| Water pressure (Mpa) | Adjustable as per water flow |
| Distance from specimen | 2.5m (distance between nozzles to center of turntable) |
| Nozzle Swing Mode | UP-Down swing (angle, speed adjustable) |
| Flow Control Mode | Manual control |
| Protection | Electric leakage, hydropenia, short circuit |
| Working Power | 380V /50Hz (3 phase 4 wires+ protective ground) |
| Power supply for specimen | 220V/50Hz |
| Power consumption | 3KW |
| Standard | IEC60529:1989+A1:1999, GB4208-2008, GB7000.1(IPX1, IPX2, IPX3, IPX4, IPX5, IPX6) |

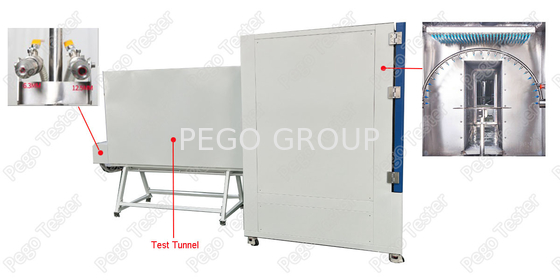

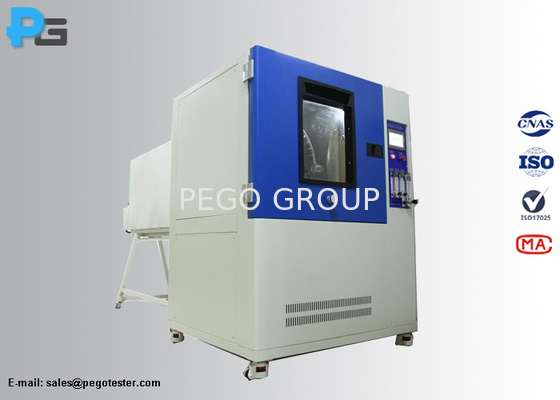

5. Product Show
