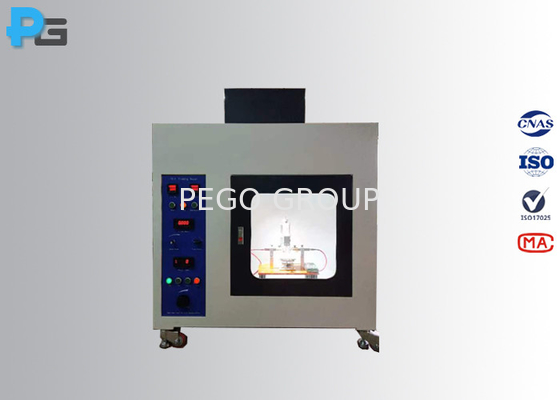

Tracking Index Test Device
1. Introduction of tracking index test device
The tracking index test device is applicable for research, production and quality inspection departments of lighting equipment, low-voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, and etc.. It is also suitable for insulating materials and engineering plastics, electrical connectors and auxiliary parts industry. The tracking index test device is made according to DIN EN60112, IEC60112, UL746A, ASTM D 3638-92, GB4706.1, GB/T4207 etc. Standard.
2. Test Principle of tracking index test device:
The tracking test is to apply a certain voltage between the 2mm*5mm platinum electrodes on the surface of a solid insulating material, and drop a conductive liquid (0.1% NH 4CL)with a specified droplet volume at a fixed height (35mm) for 30s to evaluate the leakage resistance of the surface of solid insulating materials under the combined action of electric field and humid or polluted media, and determine its comparative tracking index (CTI) and resistance to tracking index (PTI).
3. Specification
| Control Method | Button + meter |
| Station | 1 |
| Height of drops |
35mm±5mm |
| Interal of drops |
30s±5s, 50 drops: 24.5min±2min |
| Size of drops |
20 drops: 0.380g~0.480g, 50 drops: 0.997g~1.147g |
|
Test solutions |
Solution A: 0.1%NH4Cl, 3.95±0.05Ωm, solution B: 1.98±0.05Ωm |
|
Number of drops |
0~9999 (presettable, record and display) |
|
Test wind speed |
0.2m/s |
|
Short circuit current drop |
1.0A±0.1A drop 10% |
|
Leakage indicator |
0.50A±10% , 2.00s±10% |
| Material of electrodes | ≥99% platinum |
| Size of electrodes | 2mm±0.1mm)×(5mm±0.1mm)×(40mm±5mm), length≥12mm, Angle of chisel-edged: 30°±2° |
|
Electrode distance |
4.0mm±0.1mm, angle: 60°±5° |
|
Electrode pressure |
1.00±0.05N |
|
Electrode voltage |
100~600V |
|
Safe operation interface |
automatically power off upon open the glass window |

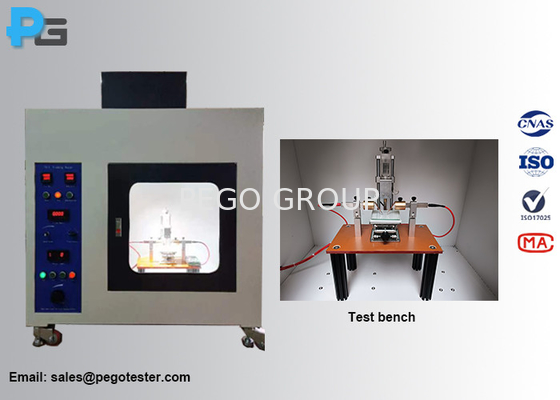

4. Test bench
FAQ:
1. Can you provide the third-lab calibration certificate of the tracking index test device?
Answer: Yes, the tracking tester will come with a calibration certificate authorized by ISO17025 lab.
2. What package will be used for shipment?
Answer: The device will be well packed with a wooden case for shipment.
3. What's the material of electrodes?
Answer: The electrodes are made of platinum, and the purity is ≥99%.
4. How about the after-sales service provide by Pego?
Answer: For the after-sales service, the warranty period is 12 months upon receipt of the cargo, and we will also provide life-long maintenance.
