| Standard: | IEC60335-1 Clause 21.2 | Configuration: | Scratch Test Pin, 30N Load |
|---|---|---|---|
| Material: | Hardened Steel | Application: | For Testing The Dielectric Strength Of Accessible Parts Of The Solid Insulation |
| High Light: | Dielectric Strength Test Device,30N Loaded Dielectric Strength Test Device,Hardened Steel Dielectric Strength Test Device |
||

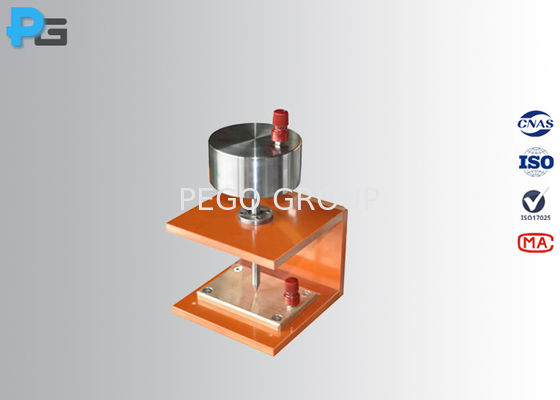

Dielectric Strength Test Device with 30N Loaded Hardened Steel Pin IEC60335-1 clause 21.2
1. Introduction
The dielectric strength test device is designed to meet the test requirements of IEC60335-1 clause 21.2, a hardened steel pin is used as a electrode during the dielectric strength test. After the scracth test, the device should work with a hipot tester to test the withstand dielectric strength of the accessible parts of the solid insulation.
2. Parameter
| Hardened steel pin |
Pin tip: 40°Conical sharp Tip radius: 0.25 mm ± 0.02 mm |
| Load | 30N±0.5N |
