Luminaire Waterproof IP Testing Equipment IEC60598 IEC60529 For IPX1 IPX2 Testing

Luminaire Waterproof IP Testing Equipment IEC60598 IEC60529 For IPX1 IPX2 Testing
Luminaire Waterproof IP Testing Equipment IEC60598 IEC60529 For IPX1 IPX2 Testing

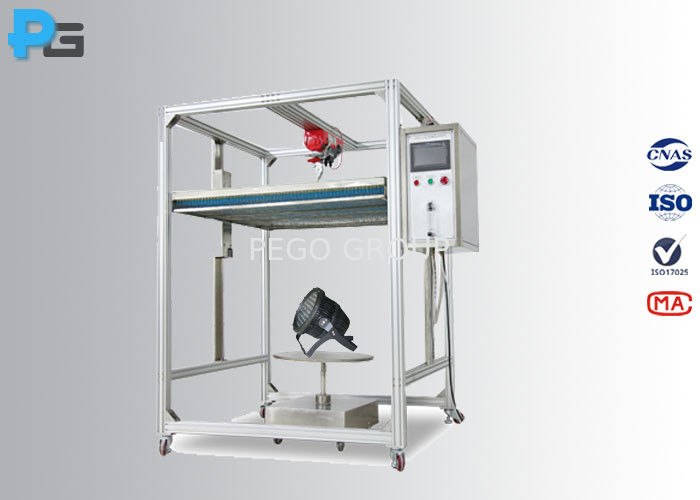

Large Image :  Luminaire Waterproof IP Testing Equipment IEC60598 IEC60529 For IPX1 IPX2 Testing

Product Details:
Place of Origin: China
Brand Name: Pego
Certification: Third-Lab Calibration Certificate
Model Number: PG-IPX12B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000~USD8000
Packaging Details: woodencase
Delivery Time: 30 working days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Standard: IEC60529, IEC60598 Material: Stainless Steel,aluminium Alloy
Application: Outdoor Lighting, Auto Parts, Watch And Etc. Type: Frame Type
Drip Board Size: Customized Working Power: 220V/50Hz
Shippment: By Sea Warranty: 12 Months
High Light:

ingress protection test equipment

,

waterproof test equipment

IEC60598 IEC60529 Luminaire IP Waterproof Testing Equipment for IPX1 and IPX2 Testing



Introduction:

IPX1-2 Drip Box is designed according to IEC60529 clause 14.2.1 and 14.2.2. It is applied to simulate the conditions of vertically dripping and dripping with 15 degrees tilted, and then to check if the products ( electronics, luminaire, electric components, auto parts and etc.) can meet the requirements. The equipment can be customized according to size of test specimen .



Features:

1). For IPX1 and IPX2 testing

2). Adopts wall-mounting structure, completely meet the requirement of IEC60529.

3). The shell and turntable are made by SUS304 stainless steel, to ensure the rustless for long time use.

4). Equip with flowmeter, can accurately manual adjust the flowmeter.

5). The cone-sharp nozzles are made by brass, and easy to change. The stainless steel protective cover under the nozzles can protect user from any hurts.

6). Equip with high accuracy filter, the filter element can change regularly.

7). The drip board can lift, and will auto stop at the position of 200mm upper of the test specimen.

8). Control system: 7 inch touch screen+ Panosonic PLC.



Specification:

Function Parameter
Model IPX12B-2000
Outer size 1900mm*1500mm*2600mm (L*W*H)
Size of drip board 2000mm*2000mm
Diameter nozzle Φ0.4mm
Nozzle spacing 20*20mm
Diameter of turntable 1000mm
Protection device Leakage protection, short circuit protection, hydropenia protection
Structure Parameter
Water flow 1~5mm/min (±0.5mm)
Flowmeter adjust mode manual
Lifting height of drip board 1000-1800mm (adjustable)
Lifting height of turntable fixed
Load bearing About 50Kg
Turntable speed 1r/min (IPX1)
Electrial Parameter
Working power 220V/50Hz
Power comsuption 1.0KW


Details Pictures:

 Luminaire Waterproof IP Testing Equipment IEC60598 IEC60529 For IPX1 IPX2 Testing 0

 Luminaire Waterproof IP Testing Equipment IEC60598 IEC60529 For IPX1 IPX2 Testing 1


Application:

 Luminaire Waterproof IP Testing Equipment IEC60598 IEC60529 For IPX1 IPX2 Testing 2
