IEC60335-1 Electrical Safety Testing Machine Temperature Rising Test Corner
1. Introduction

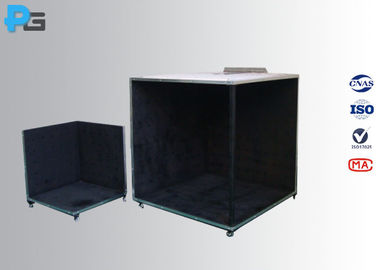

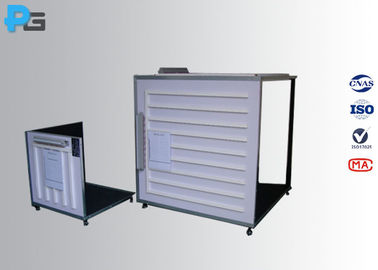

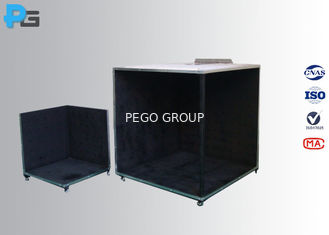

Test corner is designed according to IEC60335-1 chapter 11 “heating”. It is applied to provide a standard required conditions for temperature rising test of electric appliance. The dimension and temperature measurement arrangement of test corner can be customized according to the sample under test.
2. Specification
| Dimension | 1000*1000*1000mm (L*W*H, other size is customizable), includes two side boards, ceiling board (dismountable), floor board |
| Quantity of temperature measurement points | 136 points (floor board: 6*6=36, two side boards: 6*7*2=84, ceiling board: 4*4=16), start from the juncture of two sides boards and ceiling board and floor board. |
| Temperature measurement copper disk | dia. 15mm, thickness 1mm brass disk |
| Thermocouple | diameter no exceed 0.3mm, K type, 2m/piece (T type or J type optional) |
| Thermocouple arrangement | All the thermocouples shall lead to a line bank |
| Temperature measurement points arrangement | 100*100mm square, start from inner base. |
| Plywood | 20mm thickness, front panel is coated with dull black paint, real panel is attached with grey film plates. |
| It is moveable with 4 wheels, height | 100mm. |
| Temperature data logger is not include. | |
