IEC61000-4-2 EMC Test Equipment , 20 KV Electrostatic Discharge Generator

IEC61000-4-2 EMC Test Equipment , 20 KV Electrostatic Discharge Generator
IEC61000-4-2 EMC Test Equipment , 20 KV Electrostatic Discharge Generator IEC61000-4-2 EMC Test Equipment , 20 KV Electrostatic Discharge Generator IEC61000-4-2 EMC Test Equipment , 20 KV Electrostatic Discharge Generator

Large Image :  IEC61000-4-2 EMC Test Equipment , 20 KV Electrostatic Discharge Generator

Product Details:
Place of Origin: China
Brand Name: PEGO
Certification: Third-lab Calibration Certificate
Model Number: ESD-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3800-USD5000/set
Packaging Details: carton
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Standard: IEC61000-4-2 Output Voltage: 20KV Or 30KV For Optional
Condition: New Warranty: 12 Months
Control System: PLC Touch Screen Shippment: By Express
Working Power: Single AC85~265V,50/60Hz Dimension: 250×210×130mm
High Light:

emc test chamber

,

electrostatic discharge generator

IEC61000-4-2 EMC Test Equipment 20KV Electrostatic Discharge Generator
1. Introduction
ESD-2000/2005 ESD generator is completely meet the requirements of IEC61000-4-2. The max output voltage can reach 20KV (ESD-2000)/3KV(ESD-2005), and has the features of compact structure, multiple functions and easy operation, can applied to most electronic equipment for ESD testing, like mobile, PC, MP4, digital TV, power adaptor, Li-battery, electric toy, LED lighting, vehicle electronic, treadmill and etc.

2. Specification

Model ESD-2005 ESD-2000
Output voltage 0.5~30kV±3% 0.1~20kV±3%
Polarity Positive, negative
Trigging mode SINGLE, COUNT, 20PPS, *
Discharge mode Air discharge, contact discharge
Discharge interval 0.1~9.9s (0.05S @ 20pps mode)
Numbers of discharge 0~999
Energy storage capacitance 150pF±10%
Discharge resistor: 330Ω±10%
discharge electrode Conical contact discharge electrode and spherical air discharge electrode
Air discharge voltage keep time More than 5S
Working environment Ambient temperature:10℃~35℃ humidity:30%~60%
Power Single AC85~265V,50/60Hz
Dimension and weight 250×210×130mm(D×W×H)/4kg


3. Calibration Parameter
Output Voltage

indicating voltage (KV) Technical required (KV) Measured voltage (KV)
2 1.9~2.1 1.94
4 3.8~4.2 3.87
8 7.6~8.4 7.84
15 14.25~15.75 14.7
-2 -2.1~-1.9 -1.93
-4 -4.2~-3.8 -3.94
-8 -8.4~-7.6 -7.96
-15 -15.75~-14.25 -15.0


Waveform

A B C D E F G H I
2 7.84 6.75~8.25 4.04 2.8~5.2 1.76 1.4~2.6 0.74 0.7~1
4 15.6 13.5~16.5 8.40 5.6~10.4 3.40 2.8~5.2 0.74 0.7~1
6 23.4 20.25~24.75 12.7 8.4~15..6 4.80 4.2~7.8 0.74 0.7~1
8 30.9 27~33 17.1 11.2~20.8 6.20 5.6~10.4 0.74 0.7~1
-2 -7.76 -8.25~-6.75 -4.00 -5.2~-2.8 -1.76 -2.6~-1.4 0.74 0.7~1
-4 -15.6 -16.5~-13.5 -8.60 -10.4~-5.6 -3.30 -5.2~-2.8 0.74 0.7~1
-6 -23.4 -24.75~-20.25 -12.8 -15.6~-8.4 -4.80 -7.8~-4.2 0.74 0.7~1
-8 -31.0 -33~-27 -17.2 -20.8~-11.2 -6.10 -10.4~-5.6 0.74 0.7~1

A: Indicating Voltage(KV)
B: First Peak current(A)
C:Technical required for First Peak Current(A)
D: Current @30ns(A)
E: Technical required for Current @30ns(A)
F: Current @60ns(A)
G: Technical required for Current @60ns(A)
H: Measured value of Rising Time (ns)
I: Technical required for Rising Time (ns)

Picture:

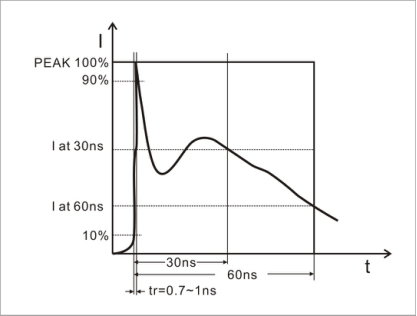

Contact Discharge Current Waveform
IEC61000-4-2 EMC Test Equipment , 20 KV Electrostatic Discharge Generator 0
