LCD Touch Screen Electrostatic Discharge Generator 0~20KV Contact / Air Discharge

LCD Touch Screen Electrostatic Discharge Generator 0~20KV Contact / Air Discharge
LCD Touch Screen Electrostatic Discharge Generator 0~20KV Contact / Air Discharge

Large Image :  LCD Touch Screen Electrostatic Discharge Generator 0~20KV Contact / Air Discharge

Product Details:
Place of Origin: China
Brand Name: Pego Group
Certification: Third-lab calibration certificate
Model Number: ESD-2000Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4000~USD6000
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T, , Western Union, MoneyGram
Detailed Product Description
Standard: IEC61000-4-2 Output Voltage: 0~20KV, 0~30KV
Warranty: 12 Months Working Power: 220V/50Hz
High Light:

emc test chamber

,

electrostatic discharge generator

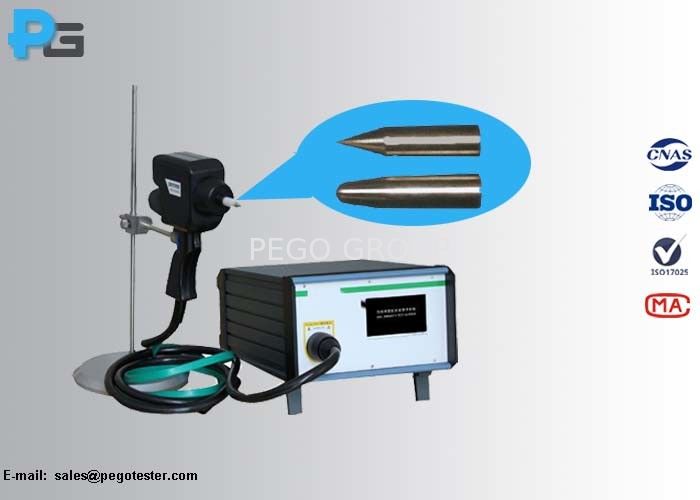

Electrostatic Discharge Generator 0~20KV Contact Discharge and Air Discharge LCD Touch Screen



1. Introduction:

The electrostatic discharge generator is consisted by ESD generator, ESD gun and two electrodes (cone sharp electrode is for contact discharge, and ball sharp electrode is for air discharge), the parameters of rising time, peak current and current at 30ns and 60ns are strictly meet the requirement of IEC61000-4-2.



The ESD generator is designed for the assessment of electrical and electronic equipment to withstand ESD performance. Electrostatic discharge generator is widely apply to the fields of industry control equipment, household appliance, chemical electronics,communication electronics,components, auto control equipment and etc.



ESD generator is to simulate electrostatic discharge, it belongs to EMC test according to IEC61000-4-2, there is two test methods: contact discharge and air discharge, the test voltage extends from 0.1KV to 20KV, user can freely choose and define the test grade.





2. Features:

1) The air discharge completely meet the standard requirement to keep the voltage for 5s above, and do not affect by air humidity, with good repeatability.

2) LCD touch screen, easy to operate and simple to update the software.

3) Built in IEC standard voltage, with auto trigger and user-defined function.

4) HV protection, over current protection and short circuit protection.

5) With 1000 groups memories.



3. Parameters:

Model ESD-2000Q ESD-2005Q
Output voltage Contact discharge 0.1-20kV ±3% 0.1-30kV ±3%
Air discharge 0.1-20kV ±3% 0.1-30kV ±3%
Holding time >5s
Polarity of output voltage Positive, negative, positive/negative auto
Trigger mode Single,counting,20pps,other
Discharge interval: 0.05~99.99s
Numbers of discharge: 1~9999
Energy storage capacitance: 150pF ±10%(replaceable)
Discharge resistor: 330Ω ±10%(replaceable)
Waveform of contact discharge Meet the standards of EN/IEC 61000-4-2,GB/T 17626.2
Rising time: 0.8ns ±25%
First peak current 7.5A ±15% @ 2kV 15A ±15% @ 4kV
22.5A ±15% @ 6kV 30A ±15% @ 8kV
Current at 30ns 4.0A ±30% @ 2kV 8.0A ±30% @ 4kV
12.0A ±30% @ 6kV 16.0A ±30% @ 8kV
Current at 60ns 2.0A ±30% @ 2kV 4.0A ±30% @ 4kV
6.0A ±30% @ 6kV 8.0A ±30% @ 8kV
Environment: Temperature:15°C-35°C;Humidity:10%-75%
Power supply: AC220±10%,50/60Hz,300W
Dimension: 260mm(W)×170mm(H)×360mm(D)
