|Standard:||LM-79||Diameter:||0cm, 30cm, 50cm, 1.0m, 1.5m, 1.75m, 2.0m, 2.5m, 3.0m|
integrating sphere system,
integrating sphere photometer

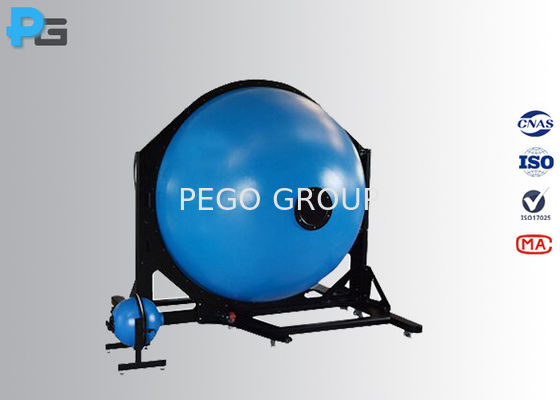

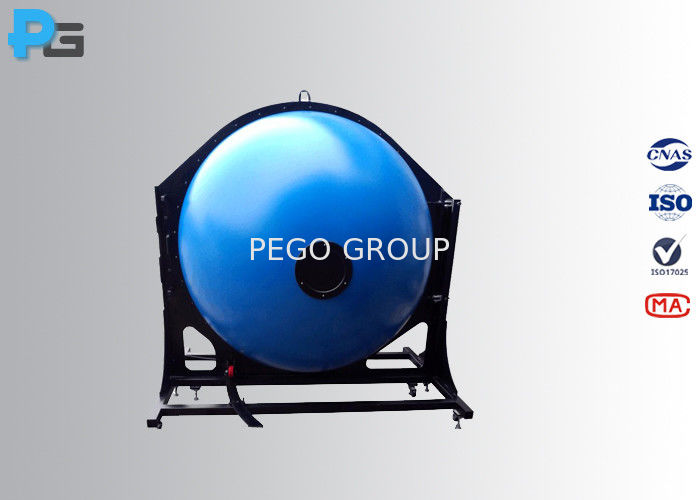

Luminaire Integrating Sphere with Diameter 0.1m / 0.3m / 0.5m / 1m / 1.5m / 2.0m
Integrating sphere is a hollow sphere coating with white diffuse reflection material, and several holes are in the surface of the sphere for the purpose of placing detector and optical fiber for signal transmission.
● reflectance: ρ≈0.93
● Coating material: BaSO4
● Material of the sphere: carbon steel
● Diameter: 10cm, 30cm, 50cm, 1.0m, 1.5m, 1.75m, 2.0m, 2.5m, 3.0m
● Lamp holders: E40,E27,E14,GU10, G13/G15 (built-in support base)
● Test method:
4π Structure: The lamp under test is mounted in the center of the ball.
2π Structure: The lamp under test is mounted in the surface of the ball.
Notice: Dia.2.0m below, the spheres can ship directly; dia.2.0m above, the spheres must divided into 8 pieces for shippment, and then assemble and spray coating the spheres at user’s side.
