|Standard:||IEC60529, IEC60598||Material:||Stainless Steel,aluminium Alloy|
|Application:||Outdoor Lighting, Auto Parts, Watch And Etc.||Type:||Frame Type|
|Drip Board Size:||Customized||Working Power:||220V/50Hz|
|Shippment:||By Sea||Warranty:||12 Months|
ingress protection test equipment,
waterproof test equipment

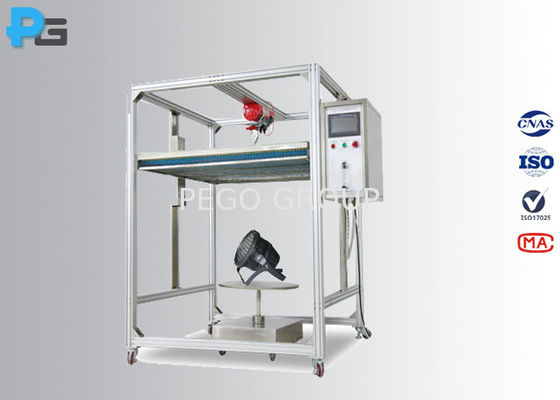

IEC60598 IEC60529 Luminaire IP Waterproof Testing Equipment for IPX1 and IPX2 Testing
IPX1-2 Drip Box is designed according to IEC60529 clause 14.2.1 and 14.2.2. It is applied to simulate the conditions of vertically dripping and dripping with 15 degrees tilted, and then to check if the products ( electronics, luminaire, electric components, auto parts and etc.) can meet the requirements. The equipment can be customized according to size of test specimen .
1). For IPX1 and IPX2 testing
2). Adopts wall-mounting structure, completely meet the requirement of IEC60529.
3). The shell and turntable are made by SUS304 stainless steel, to ensure the rustless for long time use.
4). Equip with flowmeter, can accurately manual adjust the flowmeter.
5). The cone-sharp nozzles are made by brass, and easy to change. The stainless steel protective cover under the nozzles can protect user from any hurts.
6). Equip with high accuracy filter, the filter element can change regularly.
7). The drip board can lift, and will auto stop at the position of 200mm upper of the test specimen.
8). Control system: 7 inch touch screen+ Panosonic PLC.
|Outer size||1900mm*1500mm*2600mm (L*W*H)|
|Size of drip board||2000mm*2000mm|
|Diameter of turntable||1000mm|
|Protection device||Leakage protection, short circuit protection, hydropenia protection|
|Water flow||1~5mm/min (±0.5mm)|
|Flowmeter adjust mode||manual|
|Lifting height of drip board||1000-1800mm (adjustable)|
|Lifting height of turntable||fixed|
|Load bearing||About 50Kg|
|Turntable speed||1r/min (IPX1)|
