IEC61000-4-5 Lightning Surge Generator 1.2/50µs 8/20µs Combination Wave Built - In CDN

IEC61000-4-5 Lightning Surge Generator 1.2/50µs 8/20µs Combination Wave Built - In CDN
IEC61000-4-5 Lightning Surge Generator 1.2/50µs 8/20µs Combination Wave Built - In CDN

Large Image :  IEC61000-4-5 Lightning Surge Generator 1.2/50µs 8/20µs Combination Wave Built - In CDN

Product Details:
Place of Origin: China
Brand Name: Pego Group
Certification: Third-lab calibration certificate
Model Number: LSG-6K10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4000~USD6000
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T, , Western Union, MoneyGram
Detailed Product Description
Standard: IEC61000-4-5 Output Voltage: 0~6KV
Warranty: 12 Months Working Power: 220V/50Hz
Combination Wave: 1.2/50, 8/20 µs Weight: 30KG
High Light:

emc testing services

,

electrostatic discharge generator

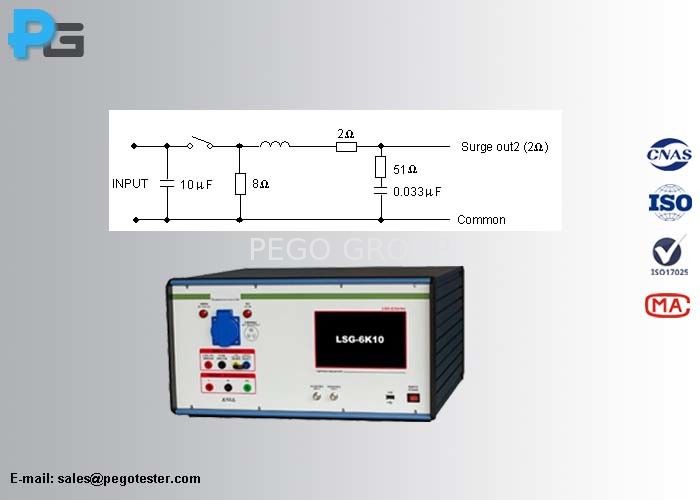

IEC61000-4-5 Lightning Surge Generator 1.2/50µs , 8/20 µs Combination Wave Built-in CDN



1. Introduction:

Lightning surge generator is designed according to IEC61000-4-5 and GB/T17626.5,the lightning surge generator can generates both 1.2/50, 8/20 µs combination wave. The test voltage is up to 6KV, user can choose and define the test levels. The parameters of waveform for surge voltage and waveform for surge current is strictly meet the standard requirements of IEC61000-4-5. It is widely used in the fields of industry control equipment, house-holding appliance,medical electronics, communications electronics,components, auto control equipment and etc.



Lightning surge generator is to simulate the surge voltage caused by switching transient and lightning transient, the surge test is to found out the surge voltage effect to EUT in normal working condition.



The Lightning surge generator is built in a 300V/10A coupling and decoupling network.



EMC Test equipment includes: EMI receiver, ESD generator, surge generator, electrical fast transient generator, voltage dips short interruptions and voltage variatins generator, ring wave generator and etc.



2. Features:

1). 7 inches LCD touch screen, with plentiful functions, easy to operation and update the software.

User can design the test program, and has 1000 groups memories.

2). Monitoring the surge voltage and current waveform by work with an external oscilloscope.

3). Built in single phrase 10A (16A) network, makes the equipment smaller and convenient.

4). With high-strength plug in the panel, EUT can connect with the equipment convenient and reliable.

5). Monitoring the work voltage and current of the EUT. Overvoltage protection and overcurrent protection.

6). Intelligent test the surge output, warning at voltage error and no output.

7). Intelligent judge the abnormal of high voltage and surge output.



3. Parameters:

Output voltage (open) 6kV (Max) ±5%
Front time 1.2μs ±30%
Time to half-value 50μs ±20%
Output current (short) 3kA±5% (max)
Front time 8μs ±20%
Time to half-value 20μs ±20%
Output polarity Positive, negative, positive/negative automatically
Output impedance 2Ω±10%
Trigger mode Synchronization,asynchronization
Inject phase Freely set at 0-360°,resolution:1°
Trigger mode Auto or manual, single
Surge times 1-9999 times
Memories 1000 groups
Surge interval 20-9999s
Accuracy: 5%
CDN AC:single phrase 300V,10A(16AMax),50/60Hz
DC:300V,10A(16AMax)
EUT power supply AC110-220V±10%,50/60Hz
Coupling mode L-N,L-PE,N-PE,L+N-PE
Working environment Temperature:15°C-35°C humidity:0%-75%
Power supply AC220±10%,50/60Hz
dimension 470mm(W)×260mm(H)×500mm(D)
Weight About 30kg
