500Ω Impedance Impulse Voltage Generator 1.2/50us Waveform IEC60225-5 IEC60335-1

500Ω Impedance Impulse Voltage Generator 1.2/50us Waveform IEC60225-5 IEC60335-1
500Ω Impedance Impulse Voltage Generator 1.2/50us Waveform IEC60225-5 IEC60335-1

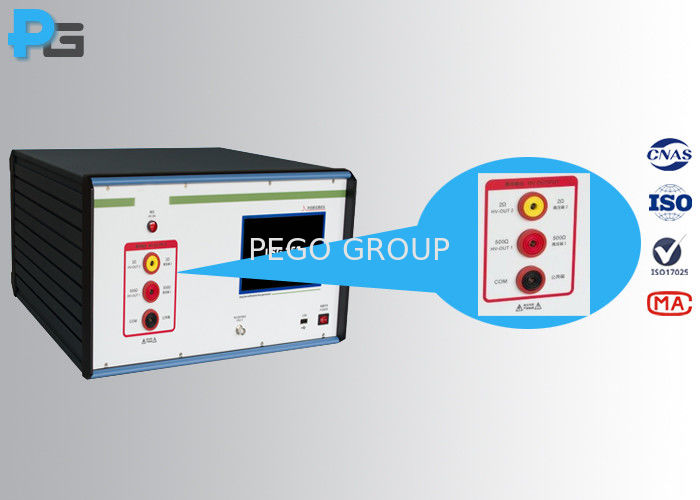

Large Image :  500Ω Impedance Impulse Voltage Generator 1.2/50us Waveform IEC60225-5 IEC60335-1

Product Details:
Place of Origin: China
Brand Name: Pego Group
Certification: Third-lab calibration certificate
Model Number: LSG-255
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4000~USD6000
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T, , Western Union, MoneyGram
Detailed Product Description
Standard: IEC60225-5, IEC60060, IEC60590, IEC60335-1, IEC 61180-1, GB14711, Output Voltage: 0~12KV
Warranty: 12 Months Working Power: 220V/50Hz
Waveform: 1.2/50us Output Impedance: 2Ω,500Ω
High Light:

emc test chamber


electrostatic discharge generator

IEC60225-5 IEC60335-1 Impulse Voltage Generator 1.2/50us Waveform 500Ω Impedance


1. Introduction:

The impulse voltage generator (high voltage surge generator) is in line with the requirements of IEC60225-5, IEC60060, IEC60590, IEC60335-1,GB14711 and etc. It is applied to do insulating perfomance test of electricl and electronic products like small power motor, low voltage electrical appliances, householding appliance, relay and etc.


The impulse voltage generator has a no-load wave shape corresponding to the 1.2/50ms standard impulse specified in IEC 61180-1. The impulse test voltage is from 0.5KV to 12KV.


2. Features:


1) 7 inch LCD touch screen with multifunction, easy to operation and update software

2) Built in over-voltage, over-current, short circuit protection

3) Voltage error and no output warning

4) Chinese and English software available



3. Technical Parameters:

1) Open output voltage: 12KV (max)±5%

2) Frontier time: 1.2μs ±30%

3) Half-value time: 50μs ±20%

4) Output polarity: positive, negative, positive/negative automatically

5) Output impedance (optional): 2Ω,500Ω±10%

6) Times: 1~9999 times

7) Surge interval: 3~999s

8) Working environment: 15℃~35℃ (temperature), 10%~75% (humidity)

9) Working power: 220V±10% AC, 50/60Hz

10) Dimension: 470mm*260mm*500mm (W*H*D)

11) Weight: 35KG
