|Wavelength Range:||380nm~780nm (visible Range)||Material:||Aluminum Alloy|
|Screen:||LCD Touch Screen||Size:||163mm*81mm*25.8mm|
|Function:||CCT, CRI, Chromaticity Coordinates, LUX, Wavelength||Warranty:||12 Months|

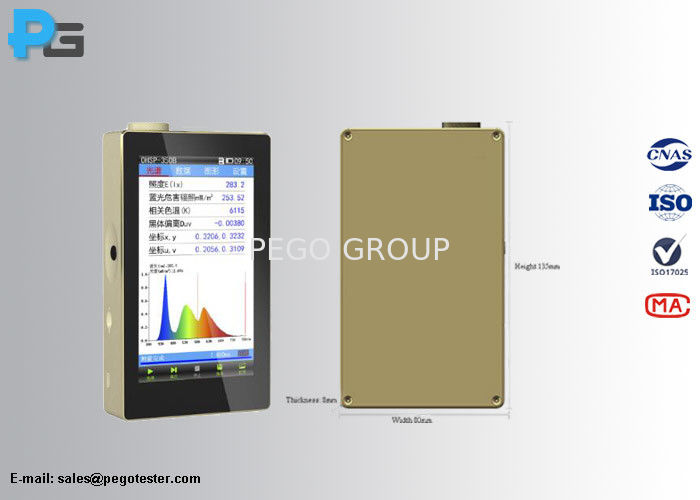

Protable Visible LED Spectrometer 380nm to 780nm to Measure Color Temperature and Lux
The protable LED spectrometer has small volume but powerful test function, it can test wavelength, correlate color temperature, color rendering index, chromaticity coordinates, illuminance, but the volume is only 163mm*81mm*25.8mm just like a iphone 7. The enclosure is made of high quality aluminum alloy with rose gold color and with 5 inch LCD touch screen to display the parameters and curves at real time, built-in 4000mAh chargeable battery which makes it looks nice and easy to carry for site test. English-Chinese language is switchable, and the software is an option for analysis purpose.
1) Long optical system, 2nm resolution, and wider wavelength range. This equipment can test the width spectral like LED, and also can test the narrow spectral like CFL and HID.
2) With the technology of auto zeroing and zero compensation, the max integral time shall be longer and can test the weaker signal.
3) Adopts shutter technology, the min integral time can be 50μs, and can test the stronger signal.
4) Adopts portable design, with features of small volume, high resolution, color display and easy operation.
|Spectrum width (FWHM)||2nm||Color temperature||1000-100000K|
|Spectrum resolution||0.2nm||X,Y accuracy||±0.001||At condition of luminaire A, 2856K, 10000LX|
|Sensor array points||3648||Illuminance accuracy||±4%|
|Zero mode||Auto zeroing||Rendering accuracy||±1.5%|
|Integral time||50us-20000ms||Wavelength accuracy||±0.5nm|
|LCD screen||5 inches, IPS touch screen||Wavelength interval||1nm|
|resolution||480*854||AD resolution||16 bits, 250KSPS|
|Exposure mode||Auto/manual||File save||8GB SD card|
|Spectrum display||6 parameters for option to display||Data output connector||SD Card/USB2.0|
|Spectrum curve||Dimension (L*W*H)||163*81*25.8mm|
|Data display||Up and down scroll to display all the data||Detector port||Ø 10mm|
|Diagram display||CIE1931 chromaticity diagram||Weight||500g|
|CIE1960 chromaticity diagram||Operation temperature||0~35°C|
|CIE1976 chromaticity diagram||Storage temperature||-10~40°C|
|SDCM diagram||continuous working hours||>10hours|
|CRI circular diagram||Battery capacity||4000mAh|
|CRI histogram||structure||aluminum alloy|
