E26/E27, E14, B22d, G5/G13 And E40 Lampcap Torque Meter Measuring Range 0-10N.m

Large Image : E26/E27, E14, B22d, G5/G13 And E40 Lampcap Torque Meter Measuring Range 0-10N.m

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	HG-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	carton
Delivery Time:	in stock
Payment Terms:	T/T, PayPal

Contact Now

Detailed Product Description

Measured Lampcaps:	E26/E27, E14, B22d, G5/G13 And E40	Test Torque Range:	0-10N.m
Control Unit:	5-inch LCD Touch Screen	Configuration:	Secondary Meter, Torque Device, Test Fixture
Function:	Upper And Low Alarming	Working Power:	AC220V±10%, 50Hz/60Hz
Highlight:	E14 Lampcap Torque Meter , B22d Lampcap Torque Meter , E26/E27 Lampcap Torque Meter

E26/E27, E14, B22d, G5/G13 and E40 Lampcap Torque Meter Measuring range 0-10N.m

1. Introduction

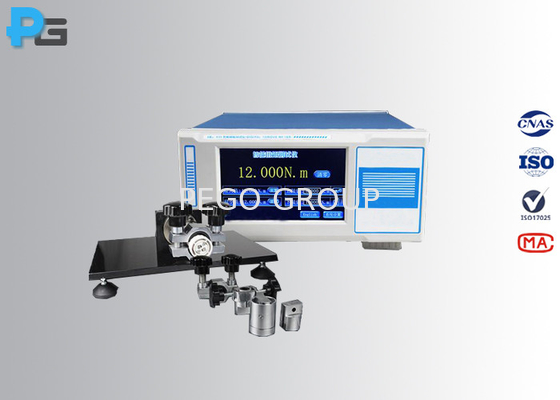

HP-10 digital torque meter is a tool to test the mechanical strength of the lampcap, it can measure the torque value of lampcaps of different luminaires like LED bulb, HID lamp and CFL lamp by equip with different fixtures. The equipment is consisted by secondary meter, torque device and test fixtures (for lampcaps E27/E26, E14/E12, B22d, G5/G13). The peak value and lower value can be preset by touch screen for alarming, and the torque value can be display in real time.

2. Specification

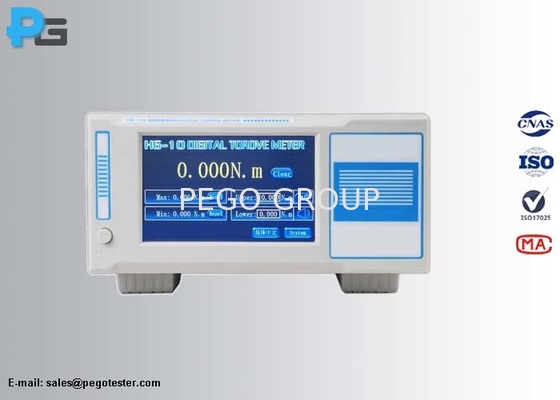

Control unit	5-inch LCD touch screen
Fixed mode	Fix the lampcap with the fixture, and rotate the lampcap forward and reverse to measure the torque value of the lamp cap
Fixture	E26/E27, E14, B22d, G5/G13 and E40 (optional)
Measuring range	0-10N.m
Resolution	0.001N.m
Test accuracy	≤1%
Repeatability	≤0.5% FS
Linearity	≤0.5% FS
Hysteresis	≤0.5% FS
Overload capacity	120%FS
Temperature Compensation Range	-10℃~60℃
Working condition	-0~40℃, ≤75% R.H.
Storage condition	-20℃~50℃, ≤75% R.H.
Working Power	220V±10%, 50Hz/60Hz
Power consumption	15VA
Dimension	305mm215mm120mm (LWH)
Weight:	Approximate 2.3KG

3. Frequently Asked Quuestions

1). Does the test carry on finished lamp or lampcap?

Pego: the test is performed on finished lamps.

2). Does the equipment will comes all the mentioned test fixtures?

Pego: the standard configure is inlcudes 26/E27, E14, B22d, G5/G13 test fixtures, E40 is an optional test fixture. When testing lamps with different lamp caps, user need to replace the corresponding test fixtures.
