Detailed Product Description
Standard: GB17743, FCC, EN55015, GB4343 Test Range: 9KHz~300MHz
Warranty: 12 Months Shippment: By Express
Configuration: EMI Receiver, LISN, Isolation Transformer, CDN, Attenuator Working Power: 220V/50Hz±10%
High Light:

emc test chamber

,

emc testing services

EMI Test System with 9KHz to 300MHz EMI Receiver and Artificial Mains Network


1. Introduction

Electromagnetic Interference (EMI) refers to the interference phenomenon caused by the action of electromagnetic waves and electronic components, includes conduction interference and radiation interference. Conducted interference refers to the coupling (interference) of signals on one electrical network to another electrical network through a conductive medium. Radiated interference means that the interference source couples (interferes) its signal to another electrical network through space. In high-speed PCB and system design, high-frequency signal lines, integrated circuit pins, various types of connectors, etc. may become antennas. A characteristic source of radiated interference that emits electromagnetic waves and affects the normal operation of other systems or other subsystems within the system.


The EMI test system includes:

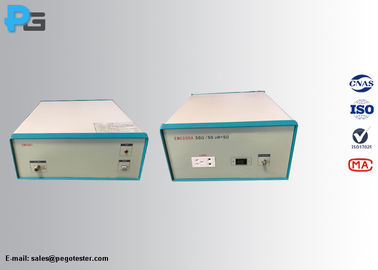

Name Model Description

EMI Conducted Interference Test System (Includes Artificial mains network (LISN), receiver, software)


EMC500 Test range: 9K~300MHz. Among them, 30M~300MHz is radiation disturbance test for luminaire and household appliance.
Isolation Transformer DAG 500W-2 pieces, 1000W-1 pieces
Attenuator CY371-2-4-20 20dB
CDN CDN-M2 Equip with EMC500 to test radiation disturbance
Attenuator CY371-2-4-20 6dB


2. Preparation:

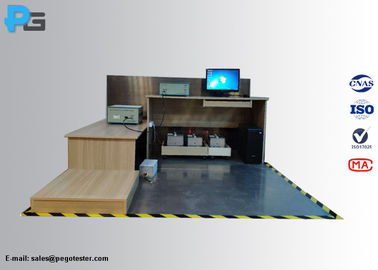

1). Lab: no less than 4m*6m. As far as possible in the first floor, and there is wet mud outside the door all year round. Or there is water pipe with material of galvanization or cast iron, in order to use as a signal ground.
2). Test bench: 2 tables, one for EMC500, the other for computer and printer
3). Wooden bench: 1 wooden table for EUT with size of 1000mm*2000mm*400mm (W*L*H)
4). Aluminium plate: two pieces for reference plate with size of 2000mm*1000mm*(2~3)mm (L*W*thickness)
5). Insulating plate: 1 piece for EUT with size of 2000mm*1000mm*(10~14)mm (L*W*thickness)
6). Computer: 1 set with at least 1 RS232C port.

3. Specification

Frequency sweep range 9KHz~300MHz
Peak value, quasi-peak value, average value level range 20dBμV~120dBμV
Scanning bandwidth

9kHz~150kHz: 200Hz
150kHz~30MHz: 9kHz
30MHz~300MHz: 120kHz

Scanning steps

9kHz~150kHz:100Hz, 200Hz, 400Hz (optional)
150kHz~30MHz: 5kHz, 10kHz, 20kHz (optional)
30MHz~300MHz: 50kHz, 100kHz, 200kHz (optional)

Test time 9kHz~150kHz

50~500ms (peak, settable)
4000~15000ms (quasi-peak, settable)

150kHz~30MHz

5~500ms (average/peak, settable)
2000~15000ms (quasi-peak, settable)

30MHz~300MHz

2~500ms (average/peak, settable)
1000~8000ms (quasi-peak, settable)

Total uncertainty ±3dB
Input impedance 50Ω
Input signal (max) 2V, protect at 5V
Software Built-in GB17743, FCC, EN55015, GB4343 standards, and support user-defined.
Working power 220V/50Hz±10%
