100KHz/0.5μs Ring Wave Generator 16A CDN for Simulating Oscillatory Transient LCD Touch Screen

100KHz/0.5μs Ring Wave Generator 16A CDN for Simulating Oscillatory Transient LCD Touch Screen
100KHz/0.5μs Ring Wave Generator 16A CDN for Simulating Oscillatory Transient LCD Touch Screen 100KHz/0.5μs Ring Wave Generator 16A CDN for Simulating Oscillatory Transient LCD Touch Screen

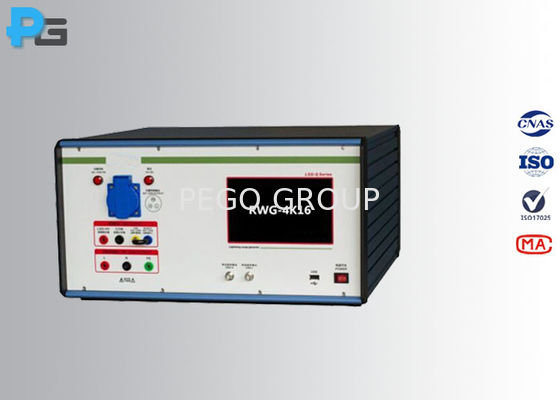

Large Image :  100KHz/0.5μs Ring Wave Generator 16A CDN for Simulating Oscillatory Transient LCD Touch Screen

Product Details:
Place of Origin: China
Brand Name: PEGO
Certification: Third-lab Calibration Certificate
Model Number: RWG-4K16
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3800-USD7000/set
Packaging Details: carton
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Standard: IEC61000-4-12 Voltage Oscillation Frequency: 100kHz±10%
Rise Time: 0.5μs±30% Output Impedance: 12Ω,30Ω
Output Voltage: 250V~4000V±10% Control System: PLC Touch Screen
Phase: Asynchronous, Synchronous Warranty: 12 Months
High Light:

emc test chamber

,

electrostatic discharge generator

IEC61000-4-11 EMC Test Equipment 100KHz PLC Touch Screen Ring Wave Generator



1. Introduction of Ring Wave Generator

Ring wave generator is completely meet the requirements of IEC61000-4-12, GB/T17626.12 and ANSIC62.41/45. The ring wave is a typical oscillatory transient, induced in low-voltage cables due to the switching of electrical networks and reactive loads, faults and insulation breakdown of power supply circuits or lightning. The ring wave has 0.5μs rise time and 100KHz oscillation frequency.



2. Parameters of Ring Wave Generator

Model RWG-4K16 RWG-6K20
Open Circuit voltage Oscillation frequency (1/T) 100kHz±10%
Open circuit Output voltage (PK1) (250V~4000V)±10% (250V~6000V)±10%
Open Circuit Voltage rising time (T1,10%~90%) 0.5μs±30%
Short Circuit Current rising time (T2,10%~90%): ≤1μs
Decaying (open circuit voltage)

40%<(PK2) to (PK1)<110%

40%<(PK3) to (PK2)<80%

40%<(PK4) to (PK3)<80%

Polarity Positive, negative, positive/negative auto
Output Impedance 12Ω, 30Ω
Phase injection method asynchronous, synchronous (0-3600) or specific angle
Coupling and decoupling network(CDN) 16A single Phase 20A 3phases/5wires
Weight 44x45x35cm 44x45x30cm
44x45x35cm (CDN)
Working Power AC 220V single phase, 50Hz/60Hz



3. Features of Ring Wave Generator

● Equip with 7 inch LCD touch screen.

● Built-in 16A single phase coupling and decoupling network (CDN).

● Equip with EUT output socket-outlet, easy to connect with EUT.

● Built-in EUT working voltage and current monitoring, has over-voltage and over-current protection.

● Intelligent program-controlled high-voltage power supply with built-in high-voltage overvoltage, overcurrent and short circuit protection.

● Ring wave output intelligent detection, voltage error, no output warning.

● With self-diagnosis function, intelligently judge the abnormal output of high voltage and ring wave



4. Picture:
