| Standard: | IEC60068-2-75 | Impact Rating: | IK07 To IK10 |
|---|---|---|---|
| Material: | Stainless Steel | Impact Hammer: | 2J, 5J, 10J, 20J |
| Warranty: | 12 Months | Travel Height: | 0-1000mm |
| High Light: | impact testing machine,impact test apparatus |
||

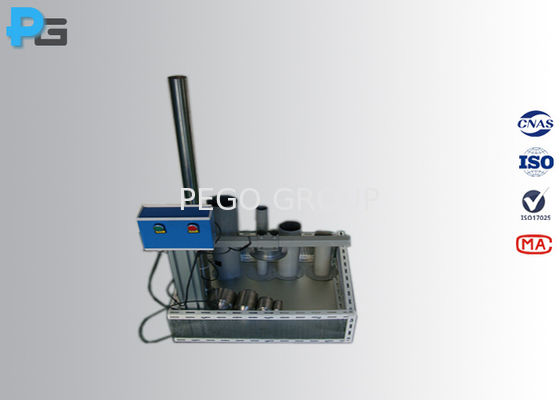

IEC60068-2-75 IK07 to IK10 Vertical Impact Test Equipment with 5 Hammers
1. Introduction
VH-1 IK07-IK10 vertical impact hammer is designed according to IEC-60068-2-75 Test Ehc.
2. Parameter
1) Travel height: 0-1000mm
2) Hammer: 2J, 5J, 10J, 20J, 50J
3) Guideway: Φ35*300mm
4) Release mode: manual
5)Height of fall
|
Energy (J) |
0.14 | 0.2 | (0.3) | 0.35 | (0.4) | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 | 50 | ||
| Equlivalent Mass (kg) | 0.25 | (0.2) | 0.25 | (0.2) | 0.25 | (0.2) | (0.2) | 0.25 | 0.25 | 0.25 | 0.5 | 1.7 | 5 | 5 | 10 |
| Height of fall mm±1% | 56 | (100) | 80 | (150) | 140 | (200) | (250) | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
3. Pictures:
