| Standard: | IEC60529 | Application: | Mobile, Household Appliance,auto Parts |
|---|---|---|---|
| Material: | Stainless Steel | Shippment: | By Sea Or Air |
| Warranty: | 1 Year | Type: | Box Type |
| High Light: | environmental testing equipment,temperature humidity test chamber |
||

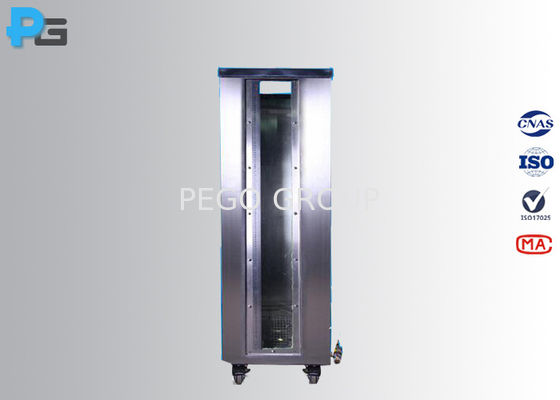

IEC60529 IPX7 Stainless Steel Water Tank Environment Test Equipment
Introduction:
Temporary Immersion Tank is designed according to IEC60529-2001 regarding the second characteristic numerals 7. Waterproof test simulates the condition of raining, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect. The distance from the bottom of sample under test to water surface should be 1m at least, the distance from top of sample to water surface should be 0.15m at least, and duration of the test is 30 min.
Specification:
| Model | IPX7-A | IPX7-B | IPX7-C | IPX7-D | IPX7E |
| Interior dimension(cm) | 80*80*120 | 120*120*150 | 30*30*30 | 80*50*150 | 60*60*150 |
| Outer dimension(cm) | 86*86*140 | 128*128*165 | 38*38*135 | 88*58*165 | 66*66*180 |
| Water depth (m) | 1.2 | 1.5 | 1.5 | 1.5 | 1.5 |
| Product under test (max) | 78*78*104cm | 118*118*134cm | 28*28*104cm | 78*48*134 | 58*58*134 |
| Material | Stalinite/stainless | stainless | stainless | stainless | stalinite |
Pictures:
