| Standard: | EN, ANSI, UL, ASTM And ISTA | Material: | Stainless Steel |
|---|---|---|---|
| Application: | Package, Electronics, Lamps | Working Power: | 220V/50Hz |
| High Light: | environmental test chamber,temperature humidity test chamber |
||

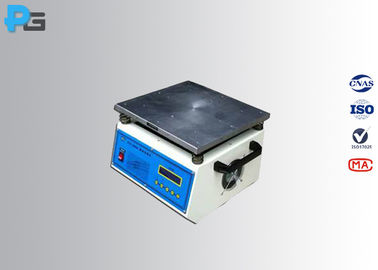

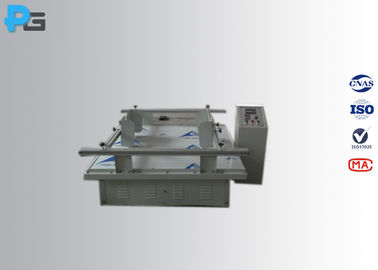

Transportation Shaker Table Conforms to ISTA and ASTM for Package and Electronics
Introduction
Shaker table is a equipment to simulate the situation during the transport, it is used to check if the goods (like electronics, toy, package, lamps and etc.) can keep the good condition after several shakes. It is designed according to the standards of EN, ANSI, UL, ASTM and ISTA.
ASTM and ISTA test method:
| Test Speed (CPM) | Frequency (Hz) | Test Time (M) |
| 95 | 150 | 2.5 |
| 79 | 180 | 3.0 |
| 66 | 210 | 3.5 |
| 60 | 240 | 4.0 |
| 53 | 270 | 4.5 |
| 48 | 300 | 5.0 |
Specification
● Working table (L*W*H): 120cm*110cm*55cm,made by SUS304 stainless steel
● Load Capacity: 100KG
● Range of frequency: 100~300RPM (adjustable)
● Amplitude: 25.4mm±10% (1 feet, fixed)
● Height of fence: 32cm
● Vibration mode: Back and Forth
