Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere

Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere
Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere

Large Image :  Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere

Product Details:
Place of Origin: China
Brand Name: PEGO
Certification: Third-Lab Calibration Certificate
Model Number: PG-TPA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD200~USD300
Packaging Details: carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Standard: IEC60529 Material: Metal And Insluating Material
Shippment: By Express Warranty: 1 Year
IP Code No.: IP1X Diameter Of Sphere: 50mm
High Light:

ingress protection test equipment

,

waterproof test equipment

IP Testing Equipment Test Probe A for IP1X Testing According to IEC60529



Introduction of Test Probe A for IP1X Testing:

The test probe A is designed according to IEC61032 fig.1, and meet the requirements of IEC60529 regarding IP1X testing and IEC60065. This probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with the back of the hand.



Specification of Test Probe A for IP1X Testing:

Diameter of test sphere: 50mm Diameter of baffle: 50mm
Thickness of baffle: 4mm Diameter of handle: 10mm
Length of handle: 100mm

Material: insulating material (handle and baffle), metal (test sphere)

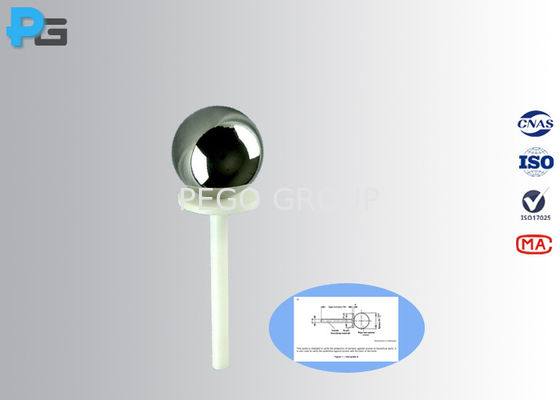

Picture of Test Probe A for IP1X Testing:

 Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere 0

FAQ

1) Does the test probe A come with a calibration certificate?

Answer: Yes, it will come with a calibration certificate issued by third-lab authorized by ISO17025.



2) What's the material of sphere?

Answer: It's made of steel.



3) How can we order this item?

Answer: E-mail us, we'll send the quotation to you within 24 hours.
