IEC60529 Standard Test Probe B , IP2X Jointed Test Finger 100 Millimeter

Name: IEC60529 Standard Test Probe B , IP2X Jointed Test Finger 100 Millimeter
Brand: PEGO
SKU: PG-TPB
Price: 300 USD
Availability: InStock
Rating: 5 (188 reviews)

Large Image : IEC60529 Standard Test Probe B , IP2X Jointed Test Finger 100 Millimeter

Product Details:

Place of Origin:	China
Brand Name:	PEGO
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-TPB

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD300~USD400
Packaging Details:	carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Standard:

IEC60529

Material:

Metal And Insluating Material

Shippment:

By Express

Warranty:

1 Year

High Light:

ingress protection test equipment

waterproof test equipment

IP Testing Equipment Test Probe B for IP2X Testing Jointed Test finger

Introduction:

Design according to IEC61032 figure 2, meet the requirements of UL507, UL1278 figure 8 and EN60529 figure 2. This probe is intended to verify the basic protection against access to hazardous parts. It is used to verify the protection against access with finger.

Specification:

Diameter of dactylogryposis:	12mm	Length of dactylogryposis:	80mm
Diameter of baffle:	50mm	Length of baffle:	100mm
Material: Insulating material (baffle and handle), metal(dactylogryposis)

Picture:

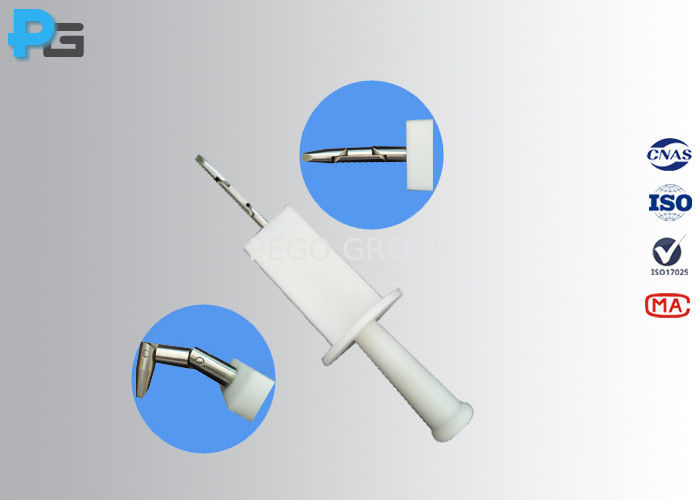

IEC60529 Standard Test Probe B , IP2X Jointed Test Finger 100 Millimeter 0

Tag:

Contact Person: Ms. Penny Peng

Tel: +86-18979554054

Fax: 86--4008266163-29929

Other Products

50mm Steel Sphere Ingress Protection Test Equipment Test Probe A For IP1X / Accessiblity

Standard: IEC60529, IEC61032

Material: metal and nylon

Force Applied: 0~50N

Warranty: 1 year

IEC61032 UL507 Jointed Test Finger , Finger Probe Test B 10N Thruster For IP2X

Standard: IEC60529, IEC61032, UL507, UL1278

Material: metal and nylon

Force Applied: 0~10N

Warranty: 1 year

IEC60529 IP3X Test Rod (Φ2.5 rod-length 100) IP Testing Equipment 0~3N Force Applied

Standard: IEC60529, IEC61032, IEC60065，IEC60598

Material: metal (rod) and nylon (handle)

Production description: Φ2.5 rod-length 100

Production name: test probe C, test rod

IEC60529 IP4X Testing Equipment Test Probe D For IP4X / Test Wire Φ1.0-length 100

Standard: IEC60529, IEC61032, IEC60065，IEC60598

Product name: test probe D, test wire

Production description: Wire: Φ1.0-length 100

Material: metal and nylon

Diameter 50mm / 12.5mm Test Spheres IP1X IP2X Protection Against Solid Foreign Objects

Standard: IEC60529, IEC61032

Material: metal

Diameter: 50mm (test probe 1), 12.5mm (test probe 2)

Weight: 500g (test probe 1), 15g (test probe 2)
