Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60065 | Relaese Mode: | Motor-driven |
|---|---|---|---|
| Material: | Stainless Steel | Fall Height: | 0-1000mm |
| Warranty: | 12 Months | Shipment: | By Sea Or Air |
| High Light: | impact testing machine,impact test apparatus |
||

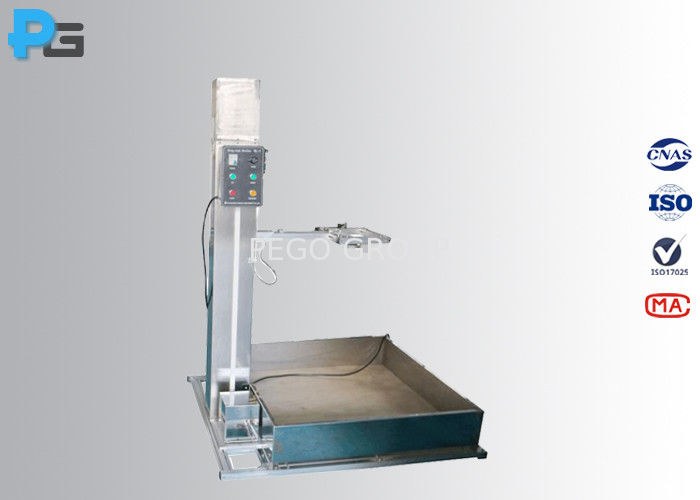

IEC60065 Impact Test Equipment Motor - Driven Drop Test Apparatus with 1000mm fall height
1. Introdouction
Drop test apparatus/bump test apparatus is designed according to IEC60950 clause 4.2.6 and IEC60065 clause 12.1.5, and IEC60065 clause 12.1.2. It is applied to drop test of information technology equipment which having a mass of 5KG or less, and bump test of audio electronic equipment which having a mass of 7kg. The horizontal surface consists of hardwood at least 13 mm thick, mounted on two layers of plywood each 19 mm to 20 mm 18 mm ± 2 mm thick, all supported on a concrete or equivalent non-resilient floor.
2. Parameters:
| Release mode | motor-driven |
| Fall Plate | hardwood at least 13 mm thick, mounted on two layers of plywood each 19 mm to 20 mm 18 mm ± 2 mm thick. Size: 1000mm*1000mm*(51~60)mm |
| Fall height | 0~1000mm (adjustable) |
| Sample requirement | mass of 5KG or less information technology equipment, mass of exceed 7kg audio electronic equipment |
| Standard | IEC60950 clause 4.2.6 and IEC60065 clause 12.1.5, IEC60065 clause 12.1.2 |
