| Standard: | IEC60529, IEC61032, IEC60065，IEC60598 | Product Name: | Test Probe D, Test Wire |
|---|---|---|---|
| Production Description: | Wire: Φ1.0-length 100 | Material: | Metal And Nylon |
| Force Applied: | 1N | Warranty: | 1 Year |
| Highlight: | ingress protection test equipment,waterproof test equipment |
||

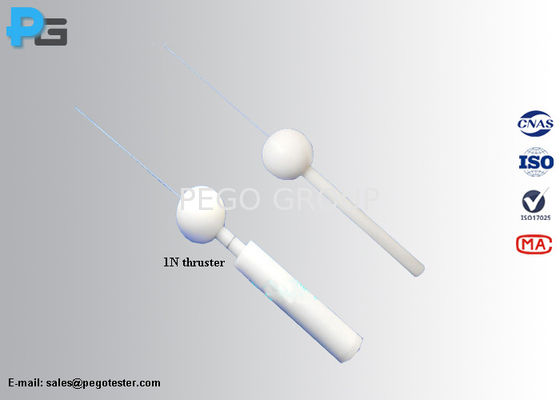

IEC61032 Test Probe D for IP4X / Test Wire with Nylon Handle 1N Force Applied
1. Introduction of Test Probe D:
Test probe D (Test wire: Φ1.0 wire-length 100) Designed according to IEC61032 figure 4, meet the requirements of IEC60529-IP3,IEC60065,IEC60598 and etc.
Test probe D is for IP4X testing, it means for the protection against solid foreign objects of Φ1.0mm and greater.
Test probe D with 1N force is for IP4X testing, it means for the protection of person’s wire from hazard parts.
2. Specification of Test Probe D:
| Length of test wire: | 100mm | Diameter of test wire: | 1mm |
| Diameter of stop sphere: | 35mm | Diameter of handle: | 10mm |
| Length of handle: | 100mm | Thruster (optional) | 1N |
| Material: Insulation material (handle, stop sphere), metal (test wire) | |||
3. Usage
4. Calibration Report
| Nominal value | Measured value | Expanded uncertainty | Conclusion |
| 10mm | 9.92mm | 0.02mm | -- |
| 35±0.2mm | 34.99mm | 0.03mm | P |
| 100±0.2mm | 100.02mm | 0.05mm | P |
| 1+0.05mm | 1.01mm | 0.01mm | P |
| 1N | 1.0N | 0.1 | -- |
