Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60061-3 | Material: | High-hardness Alloy |
|---|---|---|---|
| Shippment: | By Express | Warranty: | 1 Year |
| High Light: | go no go gauge,cap torque tester |
||

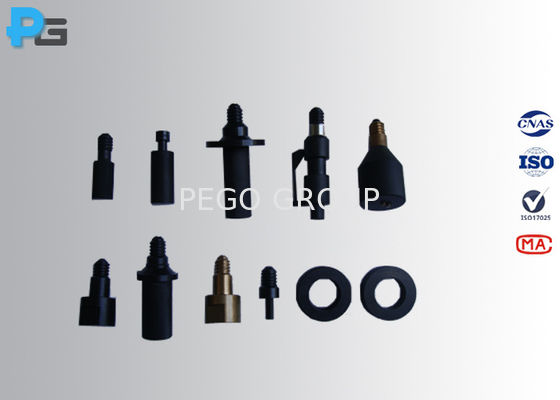

IEC60061-3 Go No Go Gauges for Lampholder Lampcap and Bases with CNAS Certificates
1. Introduction
Lamp cap and Lampholder Gauges are designed according to IEC60061-3, it is also be called to go / no go gauge.
The structure and sharp (like thread waveform) of gauges for lamp cap and lampholder are calculated and optimized by computer, and then process by computer machine to reach high precision and nice-looking.
The lamp cap and lampholder gauges (go no go gauge) is made by high-hardness alloy, and handle with QPQ composite infiltration which greatly improved the abilities of rust prevention and wear resistance, the rockwell hardness can reach HR580 above, the service life is more than 3-5 times longer than ordinary gauges.
The Lamp cap and Lampholder gauges can pass the calibration of the third-party institute, and get the calibration certificate.
2. Product list
| Figure Number | Description |
| E27 Lamp Cap Gauge | |
| 7006-27B-1 | “Go” gauge for E27 caps on finished lamps |
| 7006-27C-1 | “Go” gauge for dimension “S1” of E27 caps on finished lamps |
| 7006-28A-1 | “Not Go” gauge for E27 caps on finished lamps |
| 7006-50-1 | Gauge for finished lamps fitted with E27 caps for testing contact making |
| 7006-51-2 | Gauge for caps on finished lamps for testing protection against accidental contact |
| 7006-51A-2 | Gauge for caps on finished lamps for testing protection against accidental contact during insertion |
| E14 Lamp cap Gauge | |
| 7006-27F-1 | “Go” gauge for E14 caps on finished lamps |
| 7006-27G-1 | “Go” gauge for dimension “S1” of E14 caps on finished lamps |
| 7006-28B-1 | “Not Go” gauge for E14 caps on finished lamps |
| 7006-54-2 | Gauge for finished lamps fitted with E14 caps for testing contact making |
| 7006-55-2 | Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact |
| E12 Lamp Cap Gauge | |
| 7006-27H-1 | “Go” gauge for caps on finished lamps |
| 7006-27J-1 | Additional “Go” gauge for caps on finished lamps |
| 7006-28C-1 | “Not Go” gauge for caps on finished lamps |
| 7006-32-1 | gauge for finished lamps fitted with E12 caps for testing contact-making |
| E26 lamp cap gauge | |
| 7006-27D-3 | “Go” gauge for caps |
| 7006-29L-4 | “Not Go” gauge for caps |
| 7006-29-3 | Gauge for testing contact-making of lamps fitted with caps |
| E17 Lamp Cap Gauge | |
| 7006-27K-1 | “Go” gauge for caps on finished lamps |
| 7006-28F-1 | “Not Go’ gauge for caps on finished lamps |
| 7006-26D-1 | Gauge for testing contact-making of lamps fitted with caps |
| E39 Lamp Cap gauge | |
| 7006-24A-1 | Gauge for finished lamps fitted with E39 caps for testing contact-making |
| 7006-24B-1 | “Go” gauge for caps on finished lamps |
| 7006-24C-1 | Gauge for testing contact-making of lamps fitted with caps |
| E40 Lamp Cap gauge | |
| 7006-27-7 | “Go” gauge for caps on finished lamps |
| 7006-28D-1 | “Not Go” Gauge for caps on finished lamps |
| 7006-52-1 | Gauge for finished lamps fitted with E40 caps for testing contact making |
| 7006-53-1 | Gauge for finished lamps fitted with E40 caps for testing protection against accidental contact |
| G13 Lamp Cap gauge | |
| 7006-44-4 | “Go” and “Not Go” gauge for unmounted Bi-Pin cap |
| 7006-45-4 | “Go” gauge for BI-Pin cap on finished lamps |
| GU10 Lamp Cap gauge | |
| 7006-121-1 | Go and Not Go Gauge for Bases |
| B22 & B22D Lamp Cap Gauge | |
| 7006-10-8 | Not Go Gauge for Caps on Finished Lamps |
| 7006-11-8 | Go gauge for Caps on Finished lamps BA9, B15, BA15 & B22 |
| 7006-4A-2 | Gauges for Testing the Insertion of Caps in lampholders B15d, B22d & BY22d |
| 7006-4B-1 | Gauges for Testing the Retention of B15d and B22d Caps in the Holder |
| 7006-3-1 | Acceptance Gauge for B22d Caps Intended for Automatic Wire Threading |
| 7006-17A-1 | Go Gauge for Cap on Finished Lamps BY22d |
| G5 Lamp Cap Gauge | |
| 7006-46-3 | Go and Not Go gauge for Unmounted BI-PIN Cap |
| 7006-46A-3 | “Go” Gauge for BI-PIN Cap on Finished Lamps |
| B22 Lamp Cap Gauge | |
| 7006-10-8 | Not Go Gauge for Caps on Finished Lamps |
| 7006-11-8 | Go gauge for Caps on Finished lamps BA9, B15, BA15 & B22 |
| 7006-4A-2 | Gauges for Testing the Insertion of Caps in lampholders B15d, B22d & BY22d |
| 7006-4B-1 | Gauges for Testing the Retention of B15d and B22d Caps in the Holder |
| 7006-3-1 | Acceptance Gauge for B22d Caps Intended for Automatic Wire Threading |
| 7006-17A-1 | Go Gauge for Cap on Finished Lamps BY22d |
| B15 Lamp Cap Gauge | |
| 7006-4A-2 | B15 Lamp Cap and holder GO and Not Go Gauges |
| 7006-4B-1 | Gauges for testing the retention of B15d and B22d caps in the holder |
| 7006-10-8 | Not Go gauges for caps on finished lamps BA9, B15, B22 and BY22d |
| 7006-11-8 | Go gauges for caps on finished lamps BA9, B15, BA15 and B22 |
| B15 Lampholder Gauge | |
| 7006-12C-2 | Supplementary “Go” Gauge for lampholders B15 |
| 7006-12D-2 | “Not Go”/Retention Gauge for Lampholders B15 |
| 7006-15B-1 | Gauges for Checking Contact Position and Contact Force in Bayonet Lampholders B15d |
| Figure number | Description |
| E14 Lampholder Gauge | |
| 7006-25-7 | Go Gauge |
| 7006-26-4 | Not Go Gauge |
| 7006-30-2 | Plug gauge for E14 lampholder for testing contact making |
| 7006-30A-1 | Plug gauge for lampholder E14 with candle shaped sharp for candle lamps for testing contact making |
| 7006-31-4 | Gauge for testing Contact making and protection against accidental contact during insertion of lamps in lampholder |
| BS EN60238 Figure 5 | Test caps for lampholders E14 |
| BS EN60238 Figure 11 | Test Caps for Lampholders E14 |
| BS EN60238 Figure 13 | test cap A and Test cap B for Lampholders E14 |
| E40 Lampholder Gauge | |
| 7006-25-7 | Go Gauge for screw threads of lampholder |
| 7006-26-4 | Not Go Gauge for screw threads of lamphoder |
| 7006-23-3 | Gauge for protecting against Bulb-neck damage and for testing contact-making in lampholder |
| 7006-24-3 | Plug gauge for lampholders for testing protection against accidental contact |
| BS EN60238 Figure 5 | Test Cap for Lampholders E40 |
| BS EN60238 Figure 11 | Test Cap for lampholders E40 |
| BS EN60238 Figure 15 | Test Cap for lampholders E40 |
| E27 Lampholder gauges | |
| 7006-25A-2 | "Go" Gauge for Lampholders E27 |
| 7006-26-4 | “Not Go” Gauges for Screw threads of lampholders E27 |
| 7006-21-5 | Gauge for testing protection against bulb-neck damage and for testing contact-making in lampholders E27 |
| 7006-22A-4 | Gauge for Testing contact-making and protection against accidental contact during insertion of lamps in lampholders E27 |
| 7006-22B-1 | Gauge for detecting side-contacts with ctting-edges in lampholders E27 |
| 7006-22C-1 | Gauge I for checking side contact resiliency in lampholders E27 |
| 7006-22D-1 | Gauge II for checking side contact resiliency in lampholders E27 |
| IEC60238 figure 11 | test cap for tests of insulation resistance, electric strength and temperature rising |
| IEC60238 figure 5 | test caps |
| IEC60238 figure 14 | test caps for lampholder E27 |
3. Picture
