Plastic Izod Pendulum Impact Tester 2.75J 5.5J 11J 22J Conforms To ISO180

Plastic Izod Pendulum Impact Tester 2.75J 5.5J 11J 22J Conforms To ISO180
Plastic Izod Pendulum Impact Tester 2.75J 5.5J 11J 22J Conforms To ISO180 Plastic Izod Pendulum Impact Tester 2.75J 5.5J 11J 22J Conforms To ISO180

Large Image :  Plastic Izod Pendulum Impact Tester 2.75J 5.5J 11J 22J Conforms To ISO180

Product Details:
Place of Origin: China
Brand Name: Pego Tester
Certification: Third-lab calibration certificate
Model Number: PG-IZD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD2500-USD6000
Packaging Details: woodencase
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Standard: ISO180, GB/T1843, JB/T8761 And ASTMD256 Impact Energy: 2.75J,5.5J,11J, 22J
Volume: 870*450*850mm Weight: 85kg
Warranty: 12 Months Shippment: By Air
High Light:

impact testing machine


pendulum impact tester

Plastic Izod Pendulum Impact Tester 2.75J 5.5J 11J and 22J Conforms to ISO180


1. Introduction

The izod impact stength tester is mainly used for the determination of impact toughness of non-metallic materials such as plastic, reinforced nylon, glass reinforced plastic, ceramic, cast stone and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific research institution, universities and colleges, and quality inspection departments. Meet the requirements of ISO180-2000, GB/T1843-2008, JB/T8761-1998 and ASTMD256-2010.The izod impact strength tester is a simple structure, convenient operation and high test accuracy equipment, it adopts high-precision encoder technology, with features of high precision, good stability and large measuring range. The digital measurement shows the impact strength and average value, energy loss is automatically corrected, and test reports can be printed direclty.


2. Specifcation:

Display LCD touch screen (built-in micro-printer)
Units J/m,KJ/m2, kg-cm/cm,ft-ib/in
Angle accuracy 0.010
Impact energy accuracy 0.01J
Impact speed 3.5m/s
Distance between center of hammer to pendulum striking edge 335mm
Distance between pendulum striking edge to vice jaw upper plane 22mm
Pre-elevation 150°
Edge corner radius R=0.8±0.2mm
Impact energy 2.75J,5.5J,11J, 22J
Working power AC220V±10%, 50HZ
Weight 85kg



3. Configuration List:

Type Name number unit
Mainframe Impact test equipment 1 set
Accessories toolbox 1 set
1J impact pendulum hammer 1 set
2.75J impact weights 1 pair
5.5J impact weights 1 pair
11J impact weights 1 pair
22J impact weights 1 pair
Sample clamp 1 suit
socket head wrench 1 suit
Printer (buit-in the equipemnt) 1 set


4. Picture:

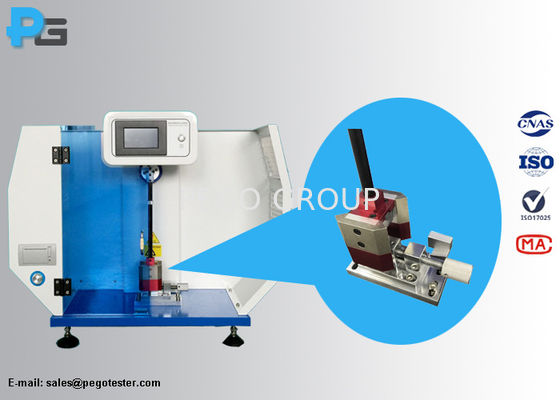

 Plastic Izod Pendulum Impact Tester 2.75J 5.5J 11J 22J Conforms To ISO180 0



Our Advantages:

1. PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.

2. Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.

3.Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.

6. Prompt Response to Customers: we promise to reply our customers within 24 hours
