Product Details:
Payment & Shipping Terms:
|
| Impact Level: | IK07, IK08, IK09, IK10 | Impact Energy: | 2J, 5J, 10J, 20J |
|---|---|---|---|
| Adjust Height: | 0-1000mm | Reference: | IEC60068-2-75, IEC62262 |
| Usage: | Impact Testing Machine, Universal Testing Machine, Safety Testing | Type: | Electronic |
| High Light: | impact testing machine,pendulum impact tester |
||
Electronic Vertical Impact Testing Machine for 2J , 5J , 10J , and 20J Impact Testing
1. Standard of Vertical Impact Testing Machine:
IEC 60068-2-75 Test Ehc <Environmental testing - Part 2: Tests - Test Eh: Hammer tests>: vertical hammer, UL498 clause SD7.2
2. Application of Vertical Impact Testing Machine
The vertical impact testing machine is used to test the mechanical strength test of the shell of the electric appliance for house hold and similar purpose, as well as test drop impact resistance of the lamp.
3. Introduction

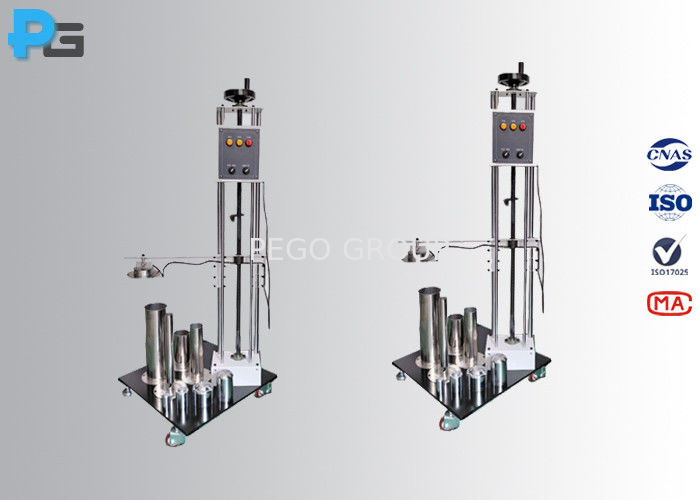

VH-1 IK07-IK10 vertical impact hammer test apparatus is designed according to IEC-60068-2-75 Test Ehc <Environmental testing - Part 2: Tests - Test Eh: Hammer tests>. It consists of striking element which falls freely from rest through a vertical height, on to the specimen surface held in a horizontal plane and guide tube. The equipment is released by electromagnet to ensure instantaneous release and vertical drop.
4. Parameter
| Travel height | 0-1000mm, manual adjustable |
| Hammer | 2J, 5J, 10J, 20J, 50J for selection |
| Guideway | equipped with 400mm, 300mm, 200mm, and 400mm length guide tube |
| Release mode | Electromagnet release |
| Power Supply | 220V, 50Hz |
| Height of fall | as table 2 |
5. Characteristics of striking elements:
6. FAQ:
1. What is the warranty period of the vertical impact testing machine?
Answer: the vertical impact testing machine's warranty is 12 months upon you receipt of the equipment
2. Can you provide third-lab calibration certificate?
Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.
3. Which energy shall we choose for the vertical impact testing machine?
Answer: There are 5 energies for your selection, 2J, 5J, 10J,20J and 50J.
7. COMPETITIVE ADVANTAGE
1. PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2. Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3.Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6. Prompt Response to Customers: we promise to reply our customers within 24 hours
8. Relative Products
IK07-10 Pendulum Impact Hammer Test Apparatus
IK01-06 Pendulum Impact Test Device
