Product Details:
Payment & Shipping Terms:
|
| Standard: | ISO811, FZT01005, BS EN20811/3321/3324, DIN53886 | Material: | Aluminum Alloy |
|---|---|---|---|
| Size: | 420×580×700mm(L×W×H) | Warranty: | 12 Months |
| High Light: | temperature humidity test chamber,environmental testing equipment |
||

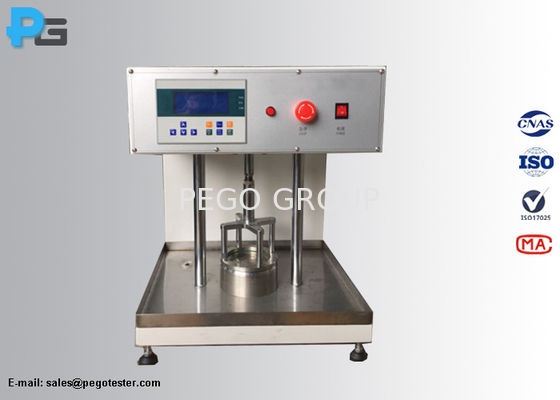

DIN53886 Fabric / Textile Hydrostatic Pressure Test Machine with Clamp
1. Introduction
Hydrostatic Pressure Test Machine is mainly used for the determination of the resistance to hydrostatic pressure of fabrics such as canvas, tarpaulin, tent cloth, rainproof cloth and etc. The sample to be tested is fixed at the clamp, and the sample is subjected to an upward pressure by circuit control. Observe the sample and record the pressure value when the sample shows a third water drop. Controlled by single-chip microcomputer, high-precision pressure sensor accurately records and displays the change of water pressure; the cylinder controls the clamp can firmly hold the sample to avoid slippage.
Includes: mainframe+LCD digital display, clamp, software
2. Application
Determination of resistance to water penetration of textile and fabric (like canvas, coated fabric, tent fabric, crepe cloth, rainproof clothing fabric and geotextile).
3. Standards compliant
GB/T4744-1997, ISO811, FZT01005, BS EN20811/3321/3324, DIN53886, AFNOR G07-057, ERT120-1, AATCC127
4. Features
1). The pressure adopts dynamic feedback adjustment to effectively prevent pressure overshoot;
2). the pressure rate range is wide and steplessly adjustable, directly set through the LCD window;
3). built-in multiple test modes are optional, which is convenient for product simulation performance analysis of various applications;
4). using Japanese Panasonic servo motor and drive system, 16-bit A / D conversion;
5). the enclosure of the equipment is made by aluminum alloy, model: desktop.
5. Parameter
| Range | 50KPa, 1000KPa (with two sensors to increase measurement accuracy) |
| Sensor protection | Automatic overload protection |
| Pressure display resolution | 1/10000 |
| Sensor test accuracy | ≤1% |
| Specimen area | 100cm2 |
| Clamp | 0~30000N |
| Pressurization rate | 0.01Pa～10KPa/min |
| Power supply | 220V/50Hz, 200W |
| Dimension | 420×580×700mm(L×W×H) |
6. COMPETITIVE ADVANTAGE
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours
