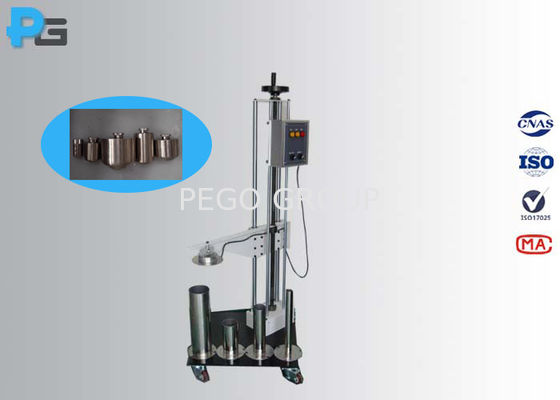

IEC62262 Mechanical Impact Protection IK rating Tester from IK01 to IK10
1. Introduction
Mechanical impact (IK) coding, or international mechanical protection, is the degree of protection an enclosure provides against harmful external mechanical impacts such as vandalism or accidental contact.
IK Impact protection testing is performed against the requirements of IEC / EN 62262 Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code). It provides evidence of the suitability of the enclosure for its intended environment. IK codes are used to identify the impact energy applied, ranging from 0.14J to 20J (IK01 to IK10).
The test rigs are desgined according to IEC60068-2-75:
Test Eha: Pendulum Impact Hammer Testing Machine
Test Ehb: Spring Hammer Test Apparatus
Test Ehc: Vertical Impact Hammer Testing Machine
2. Specification
1). characteristics of striking elements
| Energy/J |
≤1 ±10% |
2 ±5% |
5 ±5% |
10 ±5% |
20 ±5% |
50 ±5% |
|
| Equivalent mass±2%kg | 0.25(0.2) | 0.5 | 1.7 | 5 | 5 | 10 | |
| Material | Nylon | steel | |||||
| R/mm | 10 | 25 | 25 | 50 | 50 | 50 | |
| D/mm | 18.5(20) | 35 | 60 | 80 | 100 | 125 | |
| f/mm | 6.2(10) | 7 | 10 | 20 | 20 | 25 | |
| r/mm | - | - | 6 | - | 10 | 17 | |
| l/mm | Depends | ||||||
2). Fall height
| Energy/J | 0.14 | 0.2 | (0.3) | 0.35 | (0.4) | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 | 50 | ||
| Equivalent mass/kg | 0.25 | (0.2) | 0.25 | (0.2) | 0.25 | (0.2) | (0.2) | 0.25 | 0.25 | 0 .25 | 0.5 | 1.7 | 5 | 5 | 10 |
| Fall height±1%mm | 56 | (100) | 80 | (150) | 140 | (200) | (250) | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
3). Degrees of protection against external mechanical impacts
| IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 |
| 0.14J | 0.2J | 0.35J | 0.5J | 0.7J | 1J | 2J | 5J | 10J | 20J |
3. COMPETITIVE ADVANTAGE
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours
