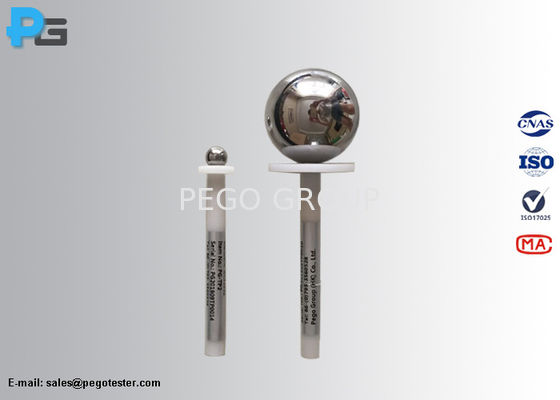

IEC60529 IP Code Probes Test Probe A and Test Probe 2 / Test Spheres Φ50mm and Φ12.5mm
1. Introduction:
IP code probe is a test probe to verify the degrees of protection specified in IEC60529. Test probe A is intended to verify the protection of persons against access to hazardous parts, It is also used to verify the protection against acess with the back of the hand. Test Spheres Φ50mm and Φ12.5mm are intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50mm/12.5mm or greater. The test probe A equipped with terminal block for electric shock test, or M6 threaded hole at the end of the handle to work with force gauge.
2. Specification
Test Probe A (Φ50mm sphere+handle)
Diameter of test sphere: | 50mm | Diameter of baffle: | 45mm |
Thickness of baffle: | 4mm | Diameter of handle: | 10mm |
Length of handle: | 100mm | Thruster (optional) : | 50N |
Material: insulating material (handle and baffle), metal (test sphere) |
Test probe 2 (Φ12.5mm test sphere)
Diameter of test sphere: | 12.5mm | Weight | 15g |
Material: metal (test sphere), Nylon (handle for optional) |
3. Figures
4. COMPETITIVE ADVANTAGE
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours
