Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60068-2-75 Annex B.3 And Figure B.5 | Material: | Stainless Steel |
|---|---|---|---|
| Accuracy: | 0.01J | Calibration Striking Element: | 250g |
| High Light: | Spring Hammer Calibration Device,IEC 60068-2-75 Calibration Device |
||

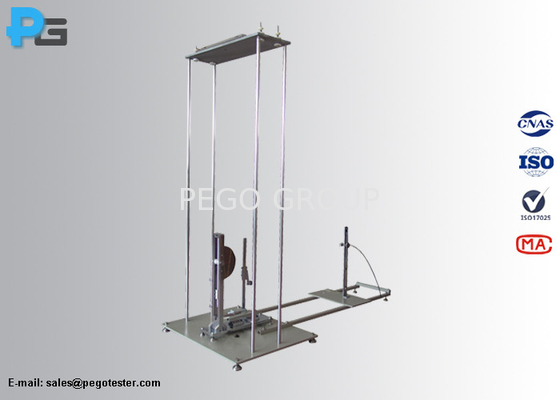

Spring Hammer Calibration Device Calibrator as per IEC60068-2-75 Annex B.3 and figure B.5
1. Introduction
The spring hammer calibration device calibrator is designed according to IEC60068-2-75 Annex B.3 and figure B.5 for checking the impact energy accuracy of spring hammer calibration device. The calibation is made with an impact energy of 1J, which is achieved with a height of fall of 408±1mm, with a calibation striking element of 250g.
2. Parameter
| Accuracy | 0.01J |
| Repeated Accuracy | ±0.01J |
| Max measuring range | 0-2J |
| Calibration striking element | 250g |
| Reference point | An impact energy of 1J is achieved with a height of 408±1mm |
| Pendulum rope center distance | 2m |
3. Figures
