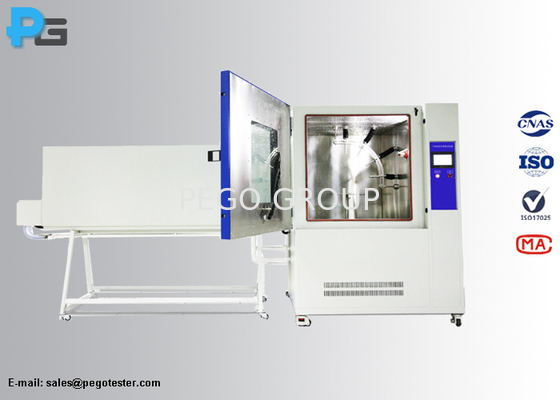

PLC Control IEC60529 waterproof Comprehensive Test Chamber for IPX5, IPX6 and IPX9K Testing
1. Application
Outdoor lightings, householding appliance, auto parts and other electronics device.
2. Function of the Comprehensive Test Chamber
The main function of this equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rainy climate conditions. After testing, verification is used to determine whether the performance of the product meets the requirements of IPX5, IPX6, IPX9 and IPX9K, so as to facilitate product design, improvement, verification and factory inspection.
3. Standard Conform to
IEC60529:1989 +A1:1999 +A2: 2013
ISO20653: 2006-08-15 figures 8 and 9, table 7 for IPX9K
1). IPX5 Water jets
Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. Test duration: at least 15 minutes, volume: 12.5 litres per minute, pressure 30 kPa at distance of 3 m.
2). IPX6 Powerful water jets
Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes, volume: 100 litres per minute, pressure 100 kPa at distance of 3 m.
3). IPX6-K Powerful water jets with increased pressure
Water projected in powerful jets (6.3 mm nozzle) against the enclosure from any direction, under elevated pressure, shall have no harmful effects. Test duration: at least 3 minutes, Water volume: 75 litres per minute, Pressure: 1000 kPa at distance of 3 m.
4). IPX9K High Pressure/Steam Water Jets Cleaning
Water projected in high pressure high temperature against the enclosure from 4 directions (00, 300, 600, 900) shall have no harmful effects. Test duration: 30s per direction, water volume: 14~16 litres per minute, pressure: 8000~10000 Kpa, temperature: 80±5℃, test distance: 100 to 150mm
4.Parameters
| Model | IPX69K |

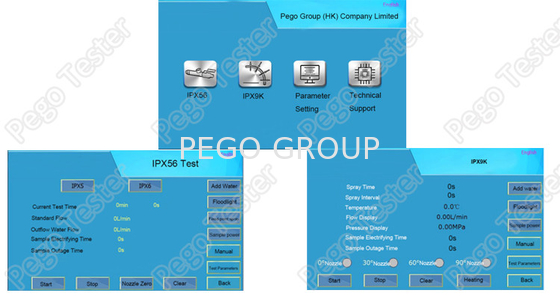

| Control Unit | touch screen+PLC control |
| Working dimension (mm) | L1200*W1200*H1200 (customized) |
| Outer dimension (mm) | L4200*W1380*H2050 |
| IPX5 & IPX6K nozzle diamater | Φ6.3mm |
| IPX6 nozzle diameter | Φ12.5mm |
| Test distance for IPX5/6 | 2.7m (distance from nozzles to turntable center) |
| Nozzle fixing method for IPX5/6 | Mechanical fixation (auto or Programmable nozzle gun angle adjustable) |
| Number of nozzles for IPX9K | 4 |
| Nozzles position | 00, 300, 600, 900 (vertical distribution) |
| Test distance for IPX9K | 100~200mm (adjustable) |
| Test time for IPX9K | 30s per position |
| Bear weight | 50kg |
| Test time | 0~9999s (presettable) |
| Diameter of turntable | Φ600mm |
| Turntable lifting mode | Manual adjustable (adjust height: 410~680mm) |
| Flow rate of IPX5 | 12.5±0.625 (L/min) |
| Flow rate of IPX6 | 100±5 (L/min) |
| Flow rate of IPX6K | 75±0.375 (L/min) |
| Flow rate of IPX9K | 14-16(L/min) |
| Water tank | 90L (recyclable) |
| Temperature of IPX9K | RT. or 80±5℃ |
| Water pressure of IPX9K | 8000-10000Kpa |
| Turn speed of turntable | 1-10r/min (adjustable) |
| Working power | 380V/50Hz, 18KW (3 phases 5 wires, L1, L2, L3+N+PE) |
| EUT power | 220V |
| Operation Language | English |
| Safety protection function | Leakage protection, water shortage protection, short circuit protection, phase sequence protection, over-heat protection |
| Working condition | 5℃~35℃ (temperature), ≤85% (R.H.), 86kPa~106kPa (pressure) |
| Water source |
1). The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet. 2). The faucet is not more than 2 meters away from the equipment |
5. Product Show
