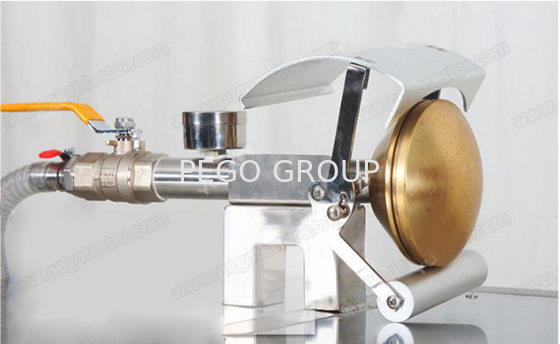

IEC60529 Hand-Held Spray Nozzle Test Device for IPX3 and IPX4 Testing
1. Application
T he spray nozzle is used in the conditions that certain types of apparatus it is not possible to wet all parts of the enclosure under test with oscillating tubes (R200-R1600), or the support of the enclosure may be moved up or down. The test is mainly apply for outdoor lightings, householding appliance, auto parts and other electronics device.
2. Function of the Comprehensive Test Chamber

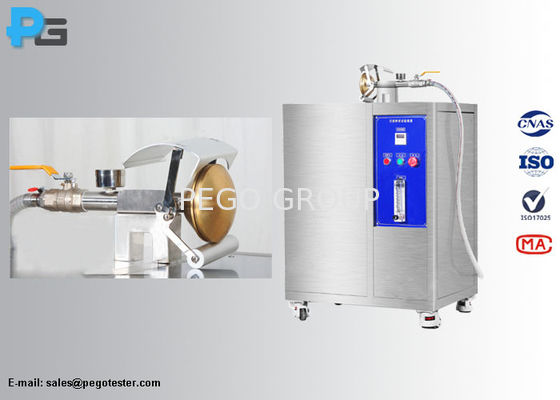

IPX3/4 spray nozzle test equipment can meet the requirement of IEC60529 clauses 14.2.3 and 14.2.4 and figure 5, it is it is apply to verify the protection against spraying water (IPX3) and splashing water (IPX4) for large size sample. The equipment is consisted by spray nozzle, water tank and control box. This equipment is to simulate the raining conditions to check the physical performance of outdoor luminaires, household appliance, auto parts and etc.
3. Standard Conform to
IEC60529:1989 +A1:1999 +A2: 2013
1). For IPX3 test: the counterbalanced shiled is in place for this test. The water pressure is adjustd to give the specified delivery rate. The pressure to achieve this delivery rate will be in the range of 50kPa to 150kPa. It should be kept constant during the test. The test duration is 1min/m2 of the calculated surface of the enclosure and with a minimum duration of 5 min.
2). For IPX4 test: The counterbalanced shield is removed from the spray nozzle and the enclosure is sprayed from all praticable directions. the rate of water flow and the spraying time per unit area are same as IPX3 test.
4.Parameters
| Outer size (L*W*H) |
870mm*600mm*950mm (control box) 370mm*115mm*165mm (spray nozzle) |
| Spray nozzle diameter | 102mm |
| Number of holes | 121 |
| Hole diameter | Φ0.5mm |
| Holes position |
1 hole at center 2 inner circles of 12 holes at 300 pitch 4 outer circles of 24 holes at 150pitch |
| Outer diameter of water inlet | Φ16mm |
| Outer diameter of water pipe | Φ28mm |
| Flow rate | 10L/min±5% |
| Flowmeter adjustment method | Manual adjustment |
| Water pressure range | 50-150Kpa |
| Flowmeter display | Glass flow meter |
| Capacity of water tank | 150L |
| Working power | AC220V/50Hz |
