Product Details:
Payment & Shipping Terms:
|
| Standard Conforms To: | IEC60529 | Test IP Level: | IPX7, IPX8 |
|---|---|---|---|
| Material: | SUS304 Stainless Steel | Working Power: | AC220V/50Hz Or Customized |
| Test Water: | Pure Water Or Tap Water | Test Water Depth: | 0-30m, 0-50m Or Customized |
| Tank Size: | Customized As Per The DUT | Control Mode: | Auto Pressure Sensor |
| Highlight: | Customizable test chamber,IEC 60529 test chamber,IPX8 Comprehensive Test Chamber |
||
Customizable IEC 60529 IPX8 High Pressure Tank Auto Pressure Controller Simulate 0-50m Water Depth
1. Function of the Comprehensive Test Chamber
IPX8 high pressure water tank is designed according to IEC60529-2001 regarding the second characteristic numerals 8 for continuous immersion test. Waterproof test simulates the condition of raining, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect. IPX8 test is subject to the agreement between user and manufacturer, the test simulates the condition under 0 to 50m below the water.
2. Application
Outdoor lightings, householding appliance, auto parts and other electronics device.
3. Standard Conform to
IEC60529:1989 +A1:1999 +A2: 2013
IPX8 high pressure water tank: The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects. Test duration: continuous immersion in water, depth specified by manufacturer, generally up to 3 m.
4.Parameters
| Tank outer size | 775 *850*1750mm (L*W*H) |
| Tank inner size | φ600*1200mm (Diameter*H) |
| Wall thickness | 4mm |
| Tank material | SUS304 stainless steel |
| Flange thickness | 25mm |
| Flange material | stainless steel |
| Weight: | About 150KG |
| Open mode | Cylinder lifting |
| Pressure control mode | auto adjustment |
| Pressure sensor error | ±0.002 Mpa |
| Pressure sensor accuracy | 0.001Mpa |
| Water depth range | 0~50m |
| Pressure adjustment range | 0.00~0.5Mpa |
| Safety valve discharge pressure | 0.55Mpa |
| Max pressure | 0.6Mpa |
| Test time | 0~999min |
| Protection device | pressure safety valve protection, leakage protection |
| Air intake adjustment | Manual adjust the pressure valve. |
| Working power | 220V/50Hz, 100W |
| Working condition | 5℃-35℃ (RT.), ≤85% (RH.), 86kPa~106kPa (pressure) |
| Water source | Tap water or pure water |
| Air source | User-supplied air compressor, suggest output pressure: 0.6Mpa-0.8Mpa |
| Accessories | Auxiliary steel rod, water pipe (5m), air inlet pipe*1 |

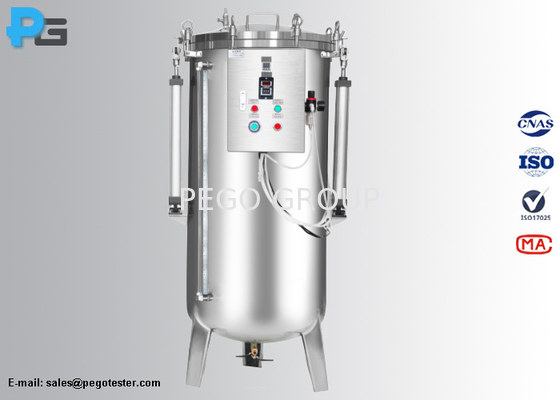

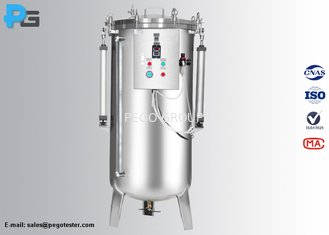

5. Product Show
