IEC62196-1 Clause 26.2 50.8mm Ball Impact Test Apparatus For EV Socket-outlet And Vehicle Inlet

Large Image : IEC62196-1 Clause 26.2 50.8mm Ball Impact Test Apparatus For EV Socket-outlet And Vehicle Inlet

Product Details:

Place of Origin:	China
Brand Name:	Pego
Certification:	Third-lab calibration certificate
Model Number:	IK-VHI

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD1500-USD4000/set
Packaging Details:	Each packed in a wooden case
Delivery Time:	25 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	20sets/month

Contact Now

Detailed Product Description

Standard:	IEC62196-1	Steel Ball:	535g
Ball Diameter:	50.8mm	Impact Energy:	1J, 2J, 3J Or 4J
Material Of Ball:	Stainless Steel	Shipment:	By Sea Or Air
Highlight:	EV Socket-outlet Ball Impact Test Apparatus , 50.8mm Ball Impact Test Apparatus

IEC62196-1 Clause 26.2 50.8mm Ball Impact Test Apparatus for EV Socket-outlet and Vehicle Inlet

1. Introduction of ball impact test apparatus

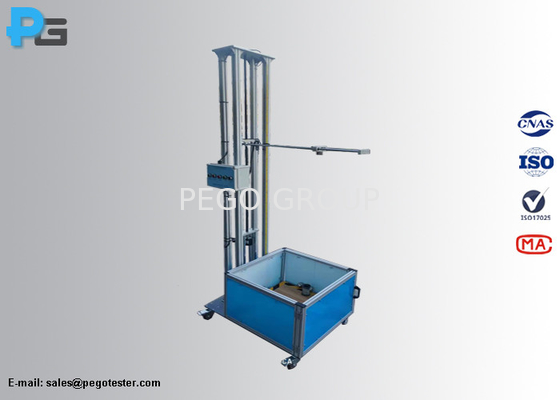

The ball impact test apparatus is designed according to IEC62196-1 clause 26.2 figure 18 and table 13. It is applied to do the drop impact test for the accessories of the ev socket-outlet and vehicle inlet. The device can perform vertical free fall impact and horizontal pendulum impact, it has the features of easy operation and high accuracy.

Swinging or dropping a 50.8mm diameter steel sphere, weighing 0.535kg to the sample, from a height (H), which will produce an impact like 1J, 2J, 3J or 4J. The sample being tested shall be rigidly supported and the impact made normal to sample by means of the ball impact test apparatus.

2. Specification of ball impact test apparatus

Impact steel ball	Φ50.8mm, 535±25g
Fall height	0.5-1.5m
Up and down mode	power-driven
Clamping release way	power control

Table 13 - Impact energy for ball impact test

Rating

Energy

Vehicle Inlets

EV socket-outlets

Up to and including 32

Above 32 and up to and including 100

Above 100 and up to and including 150

Above 150 and up to and invluding 800

3. Figures:

IEC62196-1 Clause 26.2 50.8mm Ball Impact Test Apparatus For EV Socket-outlet And Vehicle Inlet 0

4. FAQ

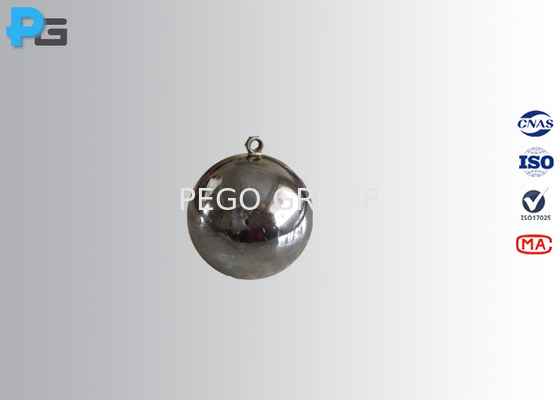

1) What kind of steel ball used for the ball impact test apparatus?

Answer: The ball is with 50.8mm diameter and 535g weight.

2) Will the apparatus come with the calibration certificate?

Answer: Yes, all of our test machines can deliveried with third-lab calibration certificates, but the cost is charged alone.
