Product Description:

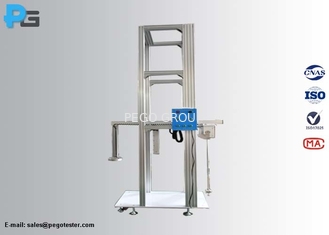

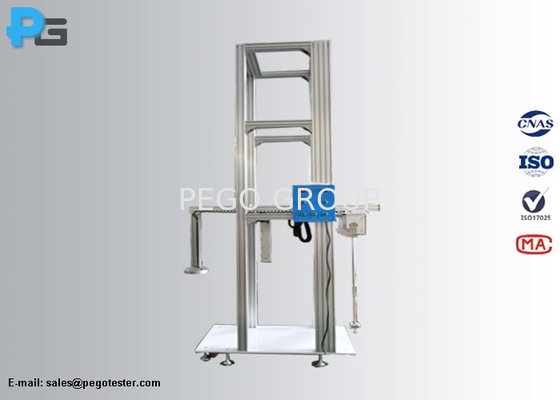

The IK08 to IK11 Mechanical Impact Test Apparatus is available with a configuration of 5J to 50J striking elements. The height of the fall varies depending on the energy level required for the specific test. For instance, for 5J energy level, the height of fall is 300mm±1%, for 10J it is 200mm±1%, for 20J it is 400mm±1%, and for 50J it is 500mm±1%.
The Impact Test Equipment is easy to operate and provides accurate and reliable results. It is designed with a sturdy frame and high-quality materials to ensure durability and longevity. The modular design allows for easy and quick maintenance, making it a cost-effective solution for industrial testing.
Overall, the IK08 to IK11 Mechanical Impact Test Apparatus for Testing EV Supply Equipment as Per IEC61851-1 is a high-quality product that provides an efficient and reliable testing solution for a wide range of industries. Whether you need to test electrical equipment, automotive parts, or any other mechanical products, this Impact Test Equipment is the perfect solution to ensure the safety and reliability of your products.
Features:
- Product Name: Impact Test Equipment
- Lifting stroke: 200-1500mm (for pendulum and vertical impacts test), 200-2300mm (for vertical impact test)
- Drop mode: Button control and electromagnet instantaneous release (for vertical impact tests), Manual control (for pendulum impact tests)
- Input: 220V/50Hz
- Product Category: Impact Test Equipment
- Equivalent mass±2%kg: 1.7, 5, 5, 10
Technical Parameters:
| Technical Parameters |
Value |
| Product Category |
Impact Resistance Tester / Enclosure Mechanical Impact Testing Equipment |
| Drop mode |
Button control and electromagnet instantaneous release (for vertical impact tests), Manual control (for pendulum impact tests) |
| Working power |
220V/50Hz |
| Equivalent mass±2%kg |
1.7, 5, 5, 10 |
| Release Mode |
Motor-driven |
| Impact Method |
Pendulum Impact And Vertical Impact |
| Input |
220V/50Hz |
| Guideway |
Φ40mm*471mm, Φ68mm*385mm, Φ89mm*337mm, Φ108mm*481.5mm, Φ133mm*587mm |
Applications:
The PG-IK model is designed with a Φ40mm*471mm, Φ68mm*385mm, Φ89mm*337mm, Φ108mm*481.5mm, Φ133mm*587mm guideway, and degrees of protection against external mechanical impacts, ranging from IK01: 0.14J, IK02: 0.2J, IK03: 0.35J, IK04: 0.5J, IK05: 0.7J, IK06: 1J, IK07: 2J, IK08: 5J, IK09: 10J, to IK10: 20J.
The Impact Test Equipment is suitable for various product application scenarios. It's also applicable in the automotive, aerospace, and construction industries for testing the impact resistance of enclosures of electrotechnical equipment and appliance.
The product is equipped with striking elements (5J*2, 10J*2, 20J*2, 50J*2) for IK08, IK09, IK10, and IK11 pendulum and vertical impact tests. The hammers are made of steel, and the input is 220V/50Hz, with f/mm: 10, 20, 20, 25. This equipment is ideal for testing materials' impact resistance and is a crucial component in the Rockwell Hardness Tester.
Pego Tester's Impact Test Equipment is a reliable and accurate machine that meets the standards of third-lab calibration certificate. It's a top-quality product that's worth investing in for any industry that requires impact testing. Payment terms include T/T, Western Union, and MoneyGram, making it easy to order and purchase this quality equipment.
Support and Services:
Our technical support and services for Impact Test Equipment include:
- Installation and commissioning of equipment
- On-site training for operators and maintenance personnel
- Calibration and verification services
- Repairs and maintenance
- Technical advice and troubleshooting
- Access to user manuals, technical documentation, and FAQs
Our team of experienced technicians and engineers are dedicated to providing you with the highest level of support to ensure your equipment is operating at peak performance.
Packing and Shipping:
Product Packaging:
The Impact Test Equipment product will be packaged securely in a sturdy cardboard box with appropriate padding to prevent any damage during transportation. The product will also be sealed with tape to ensure that the contents remain secure. Shipping:
The product will be shipped via a reliable courier service that provides tracking information. The shipping cost will be calculated based on the destination and the weight of the product. The estimated delivery time will be provided to the customer upon placing the order.
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is Pego Tester.
Q: What is the model number of the product?
A: The model number of the product is PG-IK.
Q: Is there any certification provided with the product?
A: Yes, there is a third-lab calibration certificate provided with the product.
Q: Where is the product manufactured?
A: The product is manufactured in China.
Q: What is the minimum order quantity for the product?
A: The minimum order quantity for the product is 1 set.
Q: What are the payment terms for purchasing the product?
A: The payment terms for purchasing the product are T/T, Western Union, and MoneyGram.
Q: What is the price range for the product?
A: The price range for the product is between USD1500-USD5000 per set.
Q: What is the delivery time for the product?
A: The delivery time for the product is 25 working days.
Q: How is the product packaged during delivery?
A: Each product is packed in a wooden case during delivery.
