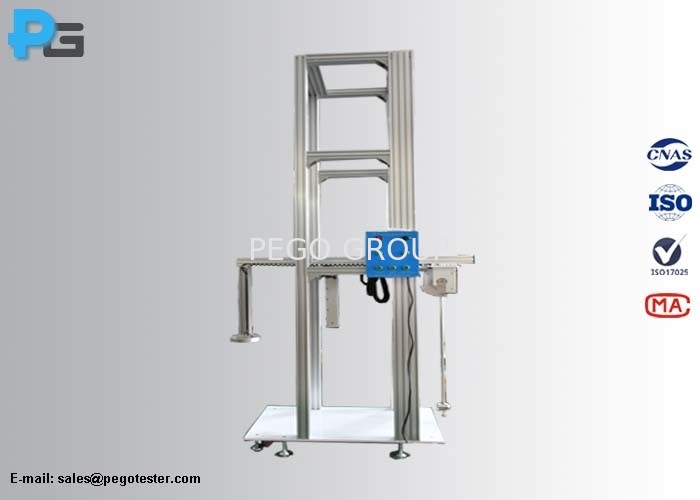

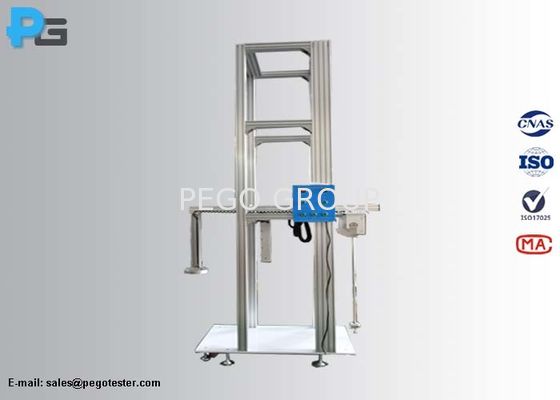

Highly Accurate Impact Test Equipment With 220V/50Hz Working Power

Highly Accurate Impact Test Equipment With 220V/50Hz Working Power
Highly Accurate Impact Test Equipment With 220V/50Hz Working Power

Large Image :  Highly Accurate Impact Test Equipment With 220V/50Hz Working Power

Product Details:
Place of Origin: China
Brand Name: Pego Tester
Certification: Third-lab calibration certificate
Model Number: PG-TA
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1500-USD5000/set
Packaging Details: Each packed in a wooden case
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Impact Hammers: Striking Elements (5J*2, 10J*2, 20J*2, 50J*2) For IK08, IK09, IK10 And IK11 Pendulum And Vertical Impact Tests, Material: Steel Swing Pipe: Steel Pipe (Length: 1000mm, Outer Diameter: 15.9mm, Thickness: 1.5mm) For Energies Exceeding 2J
Degrees Of Protection Against External Mechanical Impacts: IK01: 0.14J, IK02: 0.2J, IK03: 0.35J, IK04: 0.5J, IK05: 0.7J, IK06: 1J, IK07: 2J, IK08: 5J, IK09: 10J, IK10: 20J Guideway: Φ40mm*471mm, Φ68mm*385mm, Φ89mm*337mm, Φ108mm*481.5mm, Φ133mm*587mm
Impact Method: Pendulum Impact And Vertical Impact Equivalent Mass±2%kg: 1.7, 5, 5, 10
Product Name: IK08 To IK11 Mechanical Impact Test Apparatus For Testing EV Supply Equipment As Per IEC61851-1 Applicable Industry: EV Supply Equipment, EV Charging Station
Highlight:

50Hz Impact Test Equipment

,

220V Impact Test Equipment

,

Highly Accurate Impact Test Equipment

Product Description:

Our Impact Test Equipment is designed with various options to meet your specific needs. With f/mm options of 10, 20, 20, and 25, you can choose the perfect fit for your testing requirements. Additionally, our Impact Resistance Tester offers a wide range of degrees of protection against external mechanical impacts. Our IK ratings include IK01: 0.14J, IK02: 0.2J, IK03: 0.35J, IK04: 0.5J, IK05: 0.7J, IK06: 1J, IK07: 2J, IK08: 5J, IK09: 10J, and IK10: 20J.

Our Impact Test Equipment is also designed with precision in mind. With D/mm options of 60, 80, 100, and 125, you can be sure that your testing results will be accurate and reliable. And with R/mm options of 25, 50, 50, and 50, you can choose the perfect radius for your specific testing needs.

Whether you're looking for a Rockwell Hardness Tester or an Impact Resistance Tester, our Impact Test Device is the perfect solution for you. So why wait? Invest in the best and get reliable and accurate results every time.


Features:

  • Product Name: Impact Test Equipment
  • D/mm: 60, 80, 100, 125
  • Input: 220V/50Hz
  • Energy/J: 5 ±5%, 10 ±5%, 20 ±5%, 50 ±5%
  • f/mm: 10, 20, 20, 25
  • Product Category: Impact Test Equipment

This Metal Impact Test Apparatus, also known as the Impact Test Equipment or Metal Impact Test Machine, comes in various D/mm sizes and has an input of 220V/50Hz. The Energy/J is adjustable and ranges from 5 ±5% to 50 ±5%. The f/mm can also be adjusted to fit your needs. This is an essential tool for testing the impact resistance of metals.


Technical Parameters:

Technical Parameter Value
Height of fall: Energy(J) 5 300mm±1%
Height of fall: Energy(J) 10 200mm±1%
Height of fall: Energy(J) 20 400mm±1%
Height of fall: Energy(J) 50 500mm±1%
Lifting stroke (for pendulum and vertical impacts test) 200-1500mm
Lifting stroke (for ball vertical impact test) 200-2300mm
r/mm 6, -, 10, 17
Test IK Level IK08 To IK11
Working power 220V/50Hz
l/mm Depends
Impact Method Pendulum Impact And Vertical Impact
Input 220V/50Hz
Degrees of protection against external mechanical impacts IK01: 0.14J, IK02: 0.2J, IK03: 0.35J, IK04: 0.5J, IK05: 0.7J, IK06: 1J, IK07: 2J, IK08: 5J, IK09: 10J, IK10: 20J
Product Name IK08 to IK11 Mechanical Impact Test Apparatus for Testing EV Supply Equipment as Per IEC61851-1

Applications:

The PG-TA is equipped with striking elements (5J*2, 10J*2, 20J*2, 50J*2) for IK08, IK09, IK10 and IK11 pendulum and vertical impact tests. These elements are made of high-quality steel, ensuring durability and precision. This impact test equipment is also available in different sizes, with D/mm of 60, 80, 100, 125, and energy/J of 5 ±5%, 10 ±5%, 20 ±5%, 50 ±5%.

This product comes with a third-lab calibration certificate, proving its accuracy and reliability. It is manufactured in China, and the minimum order quantity is one set. The price of this mechanical impact test apparatus ranges from USD1500 to USD5000 per set, depending on the model and size.

The PG-TA is suitable for various product application occasions and scenarios. For instance, it can be used to test the impact resistance of electronic devices, such as smartphones, tablets, and laptops. It can also be used to evaluate the quality of automotive parts, such as bumpers, doors, and hoods. Moreover, this impact test equipment is ideal for testing the safety and durability of construction materials, such as windows, doors, and walls.

The delivery time for this product is around 25 working days, and it is packed in a wooden case for safe transportation. Payment terms include T/T, Western Union, and MoneyGram.

In conclusion, Pego Tester's Mechanical Impact Test Apparatus is a high-quality and reliable product that can help businesses ensure the safety and quality of their products. Whether you are in the automotive, aerospace, electronics, or construction industry, this impact test equipment is a valuable investment. Along with our other products such as the Rockwell Hardness Tester, we provide a wide range of options to meet all of your testing needs.


Support and Services:

Our Product Technical Support and Services for Impact Test Equipment include:

  • Installation, setup, and calibration of equipment
  • Training and demonstrations for proper use and maintenance
  • Repair and replacement of parts and components
  • Technical consultations and troubleshooting assistance
  • Software updates and upgrades
  • Customized testing solutions and equipment configurations

Our team of experienced technicians and engineers are dedicated to providing the highest level of support and service to ensure your equipment is operating at peak performance and accuracy.


Packing and Shipping:

Product Packaging:

  • Impact Test Equipment
  • Protective foam packaging
  • Product manual and instructions

Shipping:

  • Ships within 24 hours of purchase
  • Free shipping within the continental United States
  • International shipping available at an additional cost
  • Tracking number provided for all shipments

FAQ:

Q: What is the brand name of the product?

A: The brand name of the product is Pego Tester.

Q: What is the model number of the product?

A: The model number of the product is PG-TA.

Q: Is the product certified?

A: Yes, the product comes with a third-lab calibration certificate.

Q: Where is the product manufactured?

A: The product is manufactured in China.

Q: What is the minimum order quantity for the product?

A: The minimum order quantity for the product is 1 set.

Q: What is the price range for the product?

A: The price range for the product is USD1500-USD5000 per set.

Q: What are the payment terms for the product?

A: The payment terms for the product are T/T, Western Union, and MoneyGram.

Q: What is the delivery time for the product?

A: The delivery time for the product is 25 working days.

Q: How is the product packaged?

A: Each product is packed in a wooden case.
