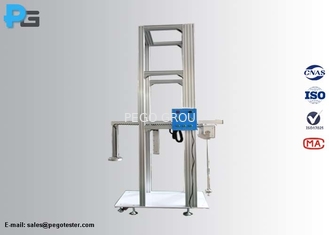

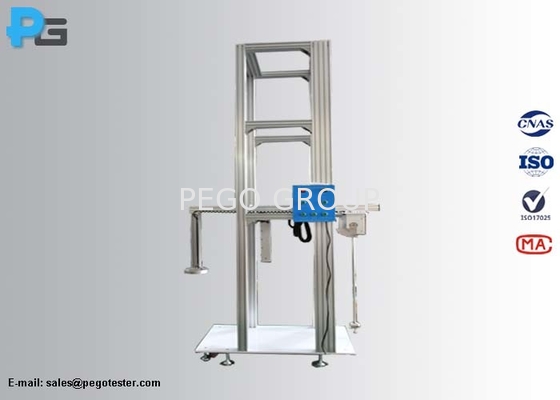

D/mm 125 Metal Impact Test Machine For Pendulum Impact And Vertical Impact Evaluation

Product Description:

Our Impact Test Device boasts a drop mode that is controlled by a button and electromagnet for instantaneous release for vertical impact tests. For pendulum impact tests, it features a manual control for ease of use. The equivalent mass of this equipment is ±2%kg, with options of 1.7, 5, 5, and 10.

The working power of our equipment is 220V/50Hz, making it compatible with most power sources. It comes equipped with striking elements, including 5J*2, 10J*2, 20J*2, and 50J*2 for IK08, IK09, IK10, and IK11 pendulum and vertical impact tests. These striking elements are also made of steel, adding to the overall durability of the equipment.

Our Metal Impact Testing Equipment is ideal for testing the impact resistance of metals and other materials. It is designed to meet the highest industry standards and is suitable for use in laboratories and industrial settings.

Investing in our Impact Test Equipment is a wise decision for any company looking to ensure the quality and reliability of their metal products. With its sturdy steel construction and precise testing capabilities, you can trust that your products will perform as expected even under the most extreme conditions.

Choose our Impact Test Equipment for your metal impact testing needs and experience the difference in quality and reliability that only the best equipment can offer.

Features:

• Product Name: IK08 to IK11 Mechanical Impact Test Apparatus for Testing EV Supply Equipment as Per IEC61851-1
• Product Category: Impact Test Equipment
• Reference Standards: IEC61851-1, IEC62262, IEC60068-2-75
• Impact hammers: Striking elements (5J*2, 10J*2, 20J*2, 50J*2) for IK08, IK09, IK10 and IK11 pendulum and vertical impact tests, material: steel
• r/mm: 6, -, 10, 17

Keywords: Metal Impact Test Machine, Metal Impact Testing Equipment, Impact Test Device

Technical Parameters:

Applications:

The PG-TA is suitable for a range of product application occasions and scenarios. It is ideal for materials testing laboratories, research and development facilities, and quality control departments across industries such as automotive, aerospace, and manufacturing. The equipment is commonly used in impact tests for metals and alloys, including cast iron, aluminum, copper, and steel.

The PG-TA's impact method includes both pendulum impact and vertical impact. The drop mode includes button control and electromagnet instantaneous release for vertical impact tests, while manual control is available for pendulum impact tests. The equipment is equipped with a swing pipe made of steel pipe with a length of 1000mm, an outer diameter of 15.9mm, and a thickness of 1.5mm, suitable for energies exceeding 2J. The equipment is also compatible with r/mm sizes 6, -, 10, and 17.

The PG-TA's motor-driven release mode ensures safety and consistency in operation. The equipment is easy to use and provides accurate results quickly. Its robust construction and durable materials make it a reliable and long-lasting investment. Each unit is packed in a wooden case for safe transportation and storage.

In summary, Pego Tester's PG-TA is an excellent impact test device that is suitable for use in a variety of settings. With its compatibility with r/mm sizes 6, -, 10, and 17, its swing pipe made of steel, its motor-driven release mode, and its ease of use, the PG-TA is an excellent investment for anyone in need of accurate and reliable impact testing.

Support and Services:

Our product technical support team is available to assist with any questions or issues you may have with your Impact Test Equipment product. Our experienced technicians can provide troubleshooting assistance, repair services, and calibration services to ensure that your equipment is functioning properly. In addition, we offer a range of services to help you get the most out of your equipment, including training and installation services. Our team can provide on-site training to ensure that your team is using the equipment correctly and efficiently, and we can also help with installation and setup to ensure that your equipment is installed correctly and ready to use. If you have any questions or need assistance with your Impact Test Equipment product, please do not hesitate to contact our technical support team.

Packing and Shipping:

Product Packaging:

The Impact Test Equipment product is carefully packaged to ensure its safe delivery. It is packed in a sturdy cardboard box with appropriate cushioning material to prevent any damage during transit.

Shipping:

We offer worldwide shipping for the Impact Test Equipment product. Shipping rates and delivery times may vary depending on the destination and shipping option selected. We use reliable and trusted shipping carriers to ensure timely and secure delivery of the product to customers.

FAQ:

Q: What is the brand name of the product?

A: The brand name is Pego Tester.

Q: What is the model number of the product?

A: The model number is PG-TA.

Q: What certification does the product have?

A: The product has a third-lab calibration certificate.

Q: What is the place of origin of the product?

A: The product is made in China.

Q: What is the minimum order quantity for the product?

A: The minimum order quantity is 1 set.

Q: What is the price range for the product?

A: The price range is between USD1500-USD5000 per set.

Q: What are the payment terms for the product?

A: The payment terms are T/T, Western Union, and MoneyGram.

Q: What is the delivery time for the product?

A: The delivery time is 25 working days.

Q: What are the packaging details for the product?

A: Each unit is packed in a wooden case.
